Technical Drawing 3, WASSCE (SC), 2017

Question 3



Make a neat freehand sketch of the pictorial view of a bick iron.

Observation



Candidates were required to make a freehand pictorial sketch of a bick iron.

Very few candidates attempted this question and their performance was fair.

Candidates werwe sexpected to do the following:

  1. sketch in pictorial view;
  2. draw for resemblance;
  3. draw to proportion;
  4. draw face A;
  5. draw face B;
  6. draw face C;
  7. draw face D;
  8. draw face E;
  9. draw face F;
  10. draw face G;
  11. draw face H;
  12. draw neatly.

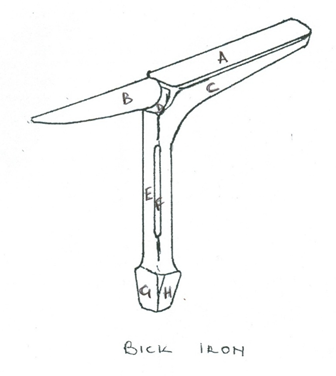

The solution is shown below:
