Technical Drawing 3, WASSCE (PC 2ND), 2018

Question 1

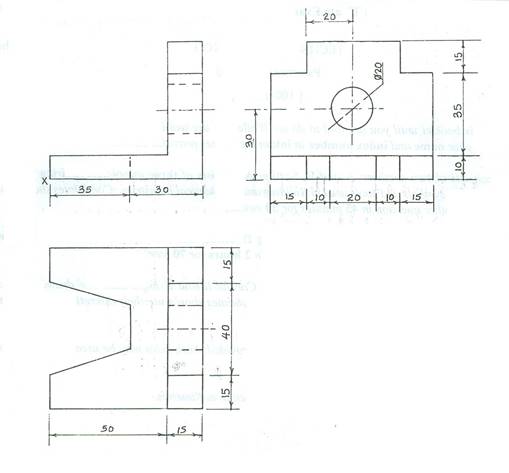

The figure above shows the views of a block in first angle projection. Make a freehand pictorial sketch of the block making X the lowest point.



Observation





Candidates were required to make a freehand pictorial sketch of a given block making X the lowest point.

Majority of the candidates attempted this question and their performance was
satisfactory.

However some of the candidates did not make X the lowest point.



Candidates were expected to do the following:



FREEHAND SKETCH

i. sketch the block in isometric;
ii. make X the lowest point;
iii. sketch faces A;
iv. sketch face B;
v. sketch faces C;
vi. sketch face  D;
vii. sketch face  E;
viii.sketch faces F;
ix. sketch face  G;
x. sketch face  H;
xi. sketch the hole            ;
xii.sketch neatly.



The solution is shown below:

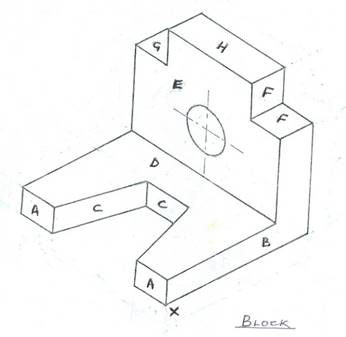

Freehand Sketch of the Block
