Question 1

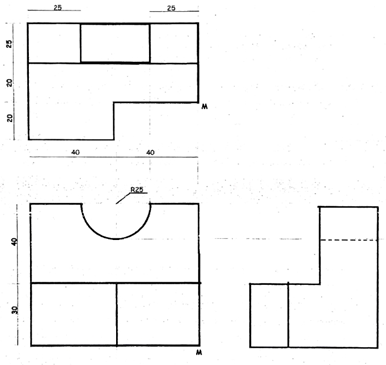

Three views of an object, given in third angle orthographic projection, are shown in Fig. 1.
Observation
Make a freehand sketch of the pictorial view of the object, making M the lowest point.
Three views of an object, given in third angle orthographic projection, are shown in Fig. 1.
Make a freehand sketch of the pictorial view of the object, making M the lowest point.
