Technical Drawing Paper 3, Nov/Dec. 2014
Questions: 1 2 3 4 Main
General Comments
Weakness/Remedies
Strength



Question 1

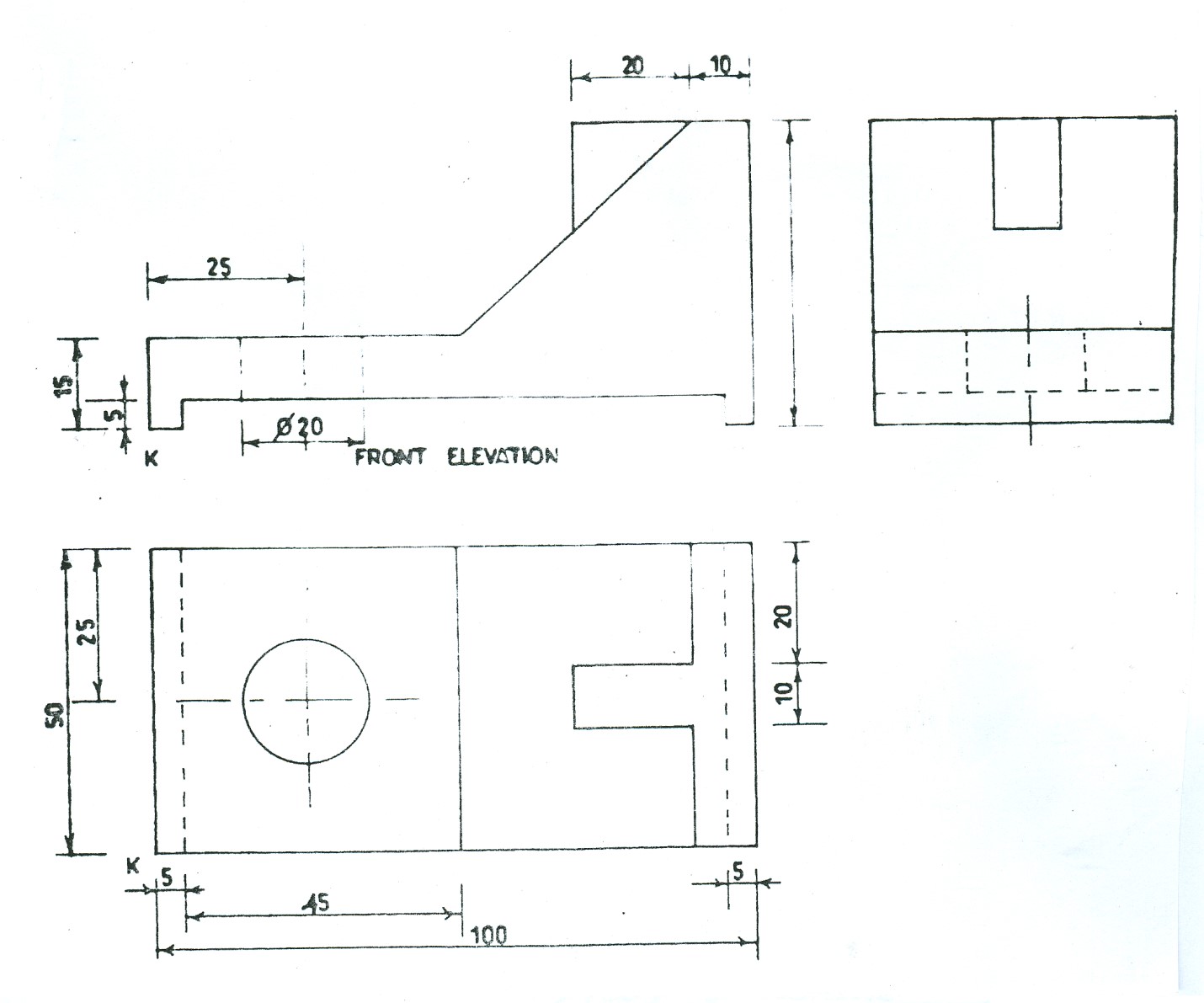

  1. The orthographic views of a block are shown in the figure below.

 Sketch approximately full size, the isometric view of the block, with point K the lowest.

_____________________________________________________________________________________________________
Observation

Candidates were asked to draw the given block in isometric using pencil and eraser only. Most candidates attempted this question.  However, most of the candidates use other drawing instruments and were penalized.





Candidates were expected to do the following:

            Freehand Isometric drawing of the block

  1. sketch using freehand;
  2. draw the block in isometric;
  3. make K the lowest point;
  4. draw for resemblance;
  5. draw to proportion;
  6. draw face J;
  7. draw face Z;
  8. draw face L;
  9. draw face M;
  10. draw face N;
  11. draw face P;
  12. draw face Q;
  13. draw face R;
  14. draw hole S/T;
  15. draw neatly.

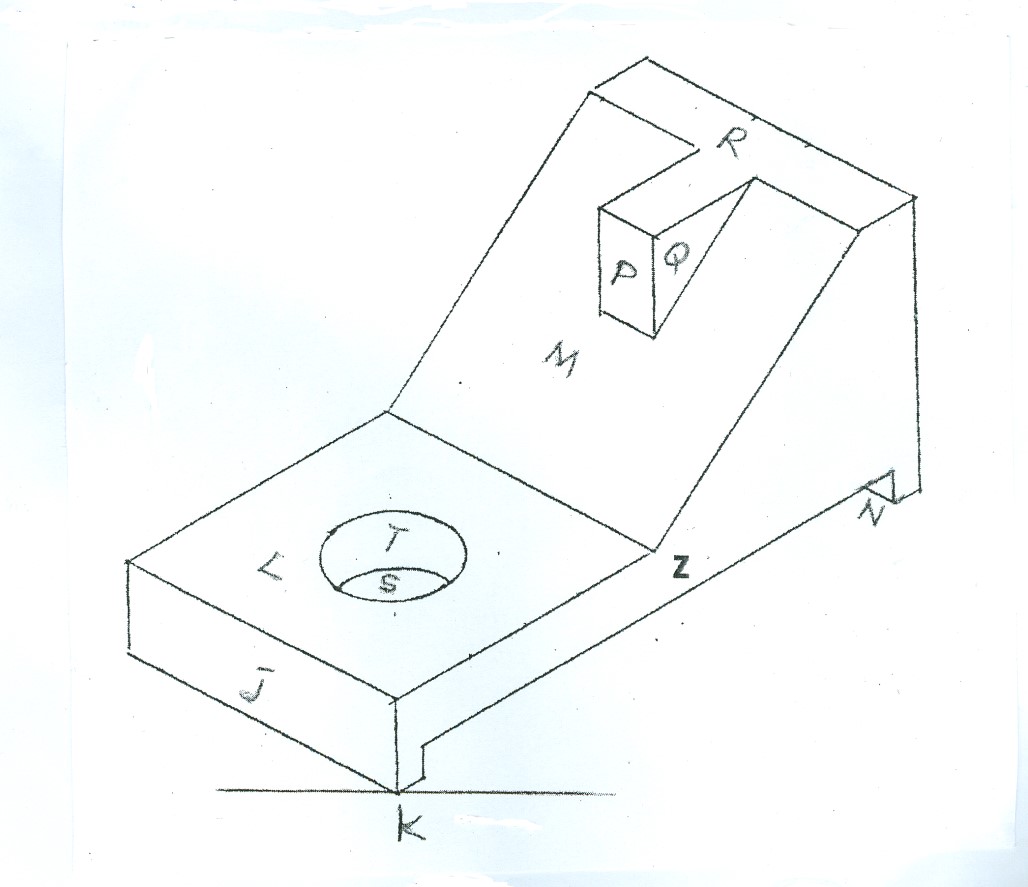

The solution is shown below:
