Technical Drawing Paper 3, Nov/Dec. 2014
Questions: 1 2 3 4 Main
General Comments
Weakness/Remedies
Strength



Question 4





The sketch plan of a three bedroom bungalow is shown below.  Study the given specification and the questions that follow.









                        FOUNDATION:          675 x 22 concrete strip laid over 50 blinding at a depth
1000 below ground level.

FLOOR:                      300 hardcore;
                                    150 concrete slab;
                                    25 mortar screed.

WALLS:                      All walls are 225 sandcrete hollow blocks with 12 rendering on both sides; floor to ceiling 3000.

LINTELS:                   225 X 225 reinforced concrete.

WINDOWS:                All windows are glazed aluminium sliding type with frame;

                                    W1 – 1100 x 900  x 25;
                                    W2 – 800 x 700 x  25.

DOOR:                        D1 – 3000 x 2100 aluminium sliding type with frame;
                                    D2 – 900 x 2100 x 40 flush wooden in 100 x 50 timber frames.

PORCH:                     Dwarf wall with coping, 1000 high from floor level; entrance 1500 wide.

ROOF:                        15º Double-pitched with asbestos roofing sheet;
                                    600 eaves projection;
                                    900 x 50 at 800 centres purlin;
                                    150 x 50 rafters;
                                    100 x 50 struts;
                                    150 x 50 tie beam;
                                    250 x 25 fascia board;
                                    50 x 50 at 1200 centres ceiling jost.

  1. Draw, to a scale of 1 : 100, the:
  2. plan;
  3. front elevation.



(b)       Draw, to a scale of 1 : 50, a detailed section F-F.

_____________________________________________________________________________________________________
Observation

Most candidates attempted this question and their performance was okay.  However, some of the candidates could not show the conventional symbols required.

Candidates were expected to do the following:

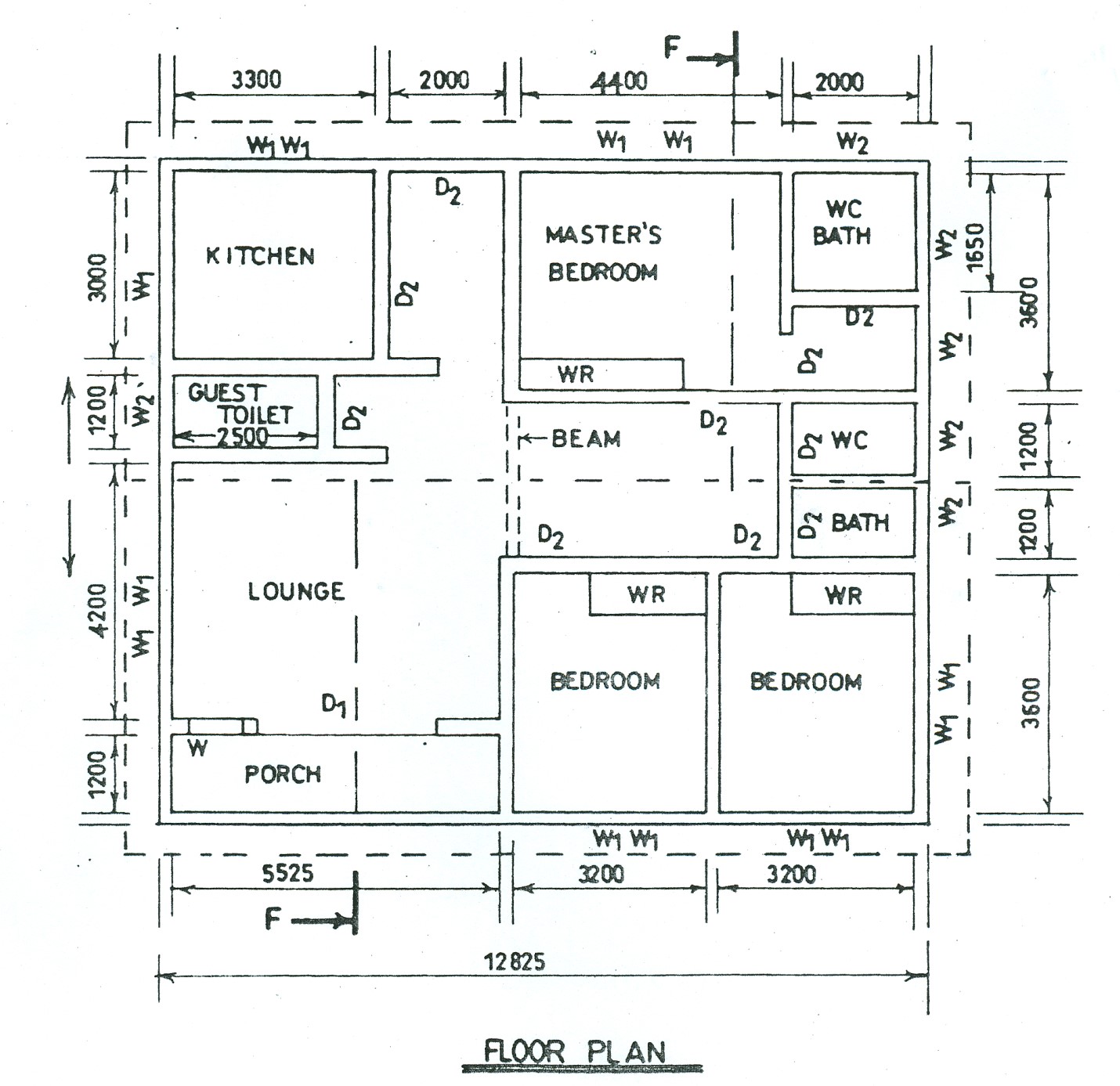

(a)       Floor Plan

(i)         draw to scale 1:100 (12,825 x 10,725 ± 10);
(ii)        draw the wall (outline);
(iii)       draw the dotted lines;

  1. draw the windows (20);
  2. draw the doors (12);
  3. drawing the cutting plane;
  4. draw the 3 wardropes (WR);
  5. draw the beams (2);
  6. identify 10 apartments;
  7. write floor plan.























The solution is shown below:

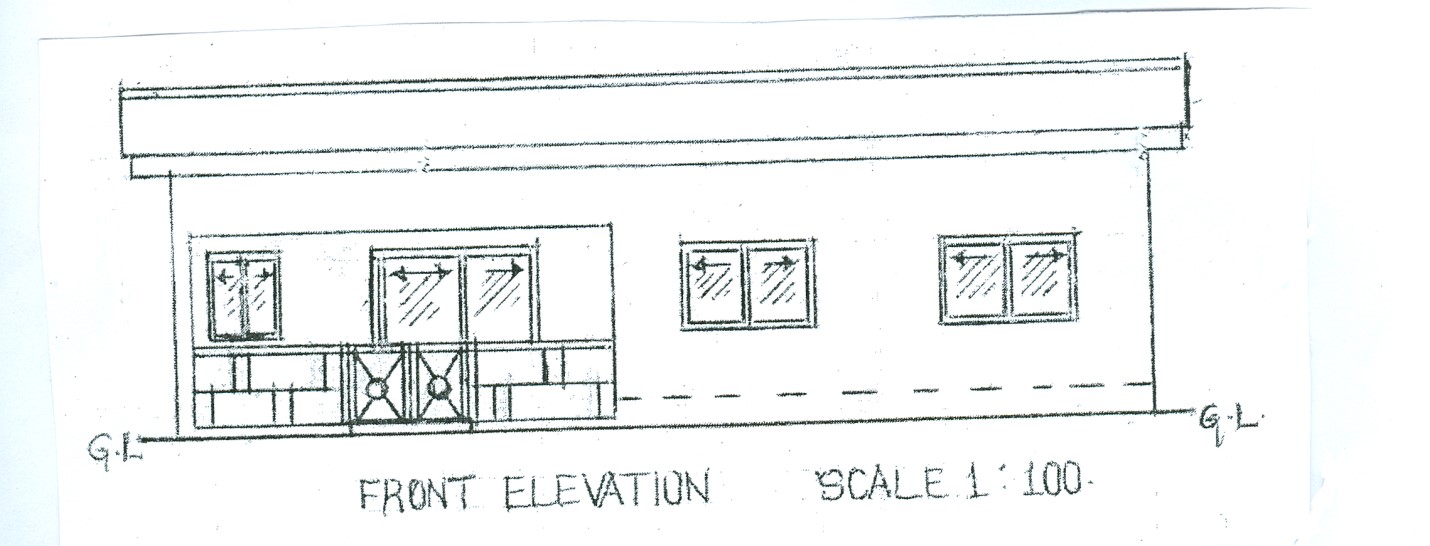

(ii)        Front Elevation

            (i)         draw to scale 1:100 (12,825 x 5,000 ± 10);
            (ii)        draw the ground line;
            (iii)       draw floor level (dotted line);
            (iv)       draw 4 walls (vertical lines);
            (v)        draw the beam;
            (vi)       draw the railing;
            (vii)      draw 3 conventional sliding windows;
            (viii)     draw a conventional sliding door;
            (ix)       draw the ceiling and roof (4 horizontal lines);
(x)        drawing the fascia board and eaves (4 vertical lines);
(xi)       write front elevation.

The solution is shown below:

                        Candidates were expected to do the following:

                        (b)       SECTIONAL VIEW F – F

                                    (i)         draw to scale 1:50 (10,725 x 5,000 ± 10);
                                    (ii)        draw 4 foundation footings and blindings;
(iii)       draw earth filling, hard core, concrete slab and finished floor level;
(iv)       draw ground line (GL);
(v)        draw 4 walls in section with coping;
(vi)       draw a vertical line;
(vii)      draw 2 lintels and a beam;
(viii)     daw 3 flush doors in elevation;
(ix)       draw 1 door in section;
(x)        draw 2 wall plates and ceiling members;
(xi)       draw the roof members (ridge cap, king post, rafters, purlins, tie beam and roofing sheets);
(xii)      show any 4 roof members of the section F – F;
(xiii)     write section F – F.
