(1) The following materials were supplied:
(a) Part A: one piece of low carbon steel 120 mm x 80 mm x 0.9 mm.
(b) Part B: one piece of low carbon steel 200 mm x 20 mm x 0.9 mm.
(c) Part C: one piece of low carbon steel 65 mm x 20 mm x 0.9 mm.
(d) one tie-on label.

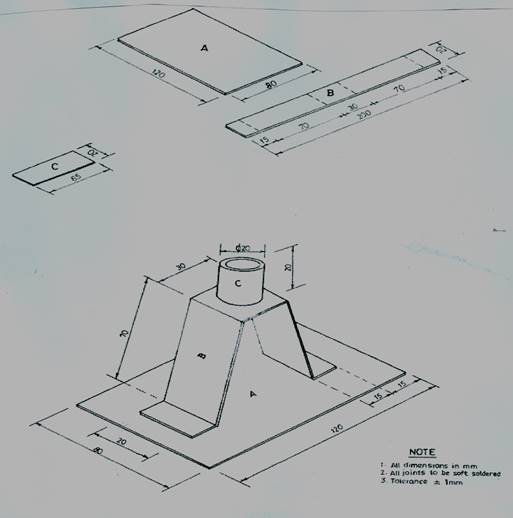

The diagrams below show parts views and the assembly of a candle stand.
Fabricate the candle stand using the materials supplied.
This was the only question and candidates were required to attempt it within the stipulated time. Most of the candidates performed very well. However, soldering was difficult for them |
