Electronics Paper 2, Nov/Dec. 2010
Questions: 1 2 3 4 5 6 7 8 9 10 Main
General Comments
Weakness/Remedies
Strength
Question 9

(a) Define the term logic gates.

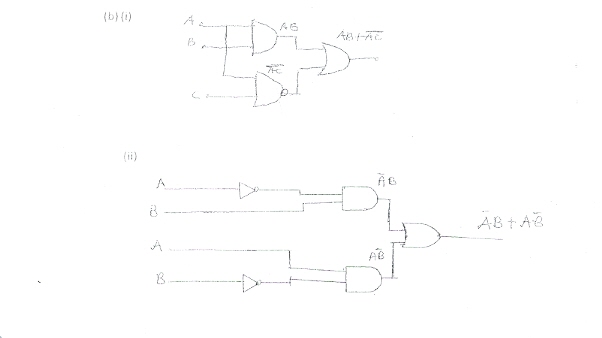

(b) Draw the combinational logic circuit for the following Boolean
expressions:
(i) Y == AS + AC
(ii) Y == AB + AB

_____________________________________________________________________________________________________
OBSERVATION

The expected answers were:
(a) Logic gate
Is a circuit that has one or more input signal but only one output signal.

The question was on Digital Electronics. The question was not all that popular with the candidates. Very few candidates correctly identified the number of outputs and inputs. No candidate was reported to have refered to the logical relationship that must
exist by design between input and output.
