Automobile Parts Mechandising Paper 2 WASSCE (SC), 2018

Section A



Question 1



Answer question one, which is compulsory, and any other question from this section.






(a)

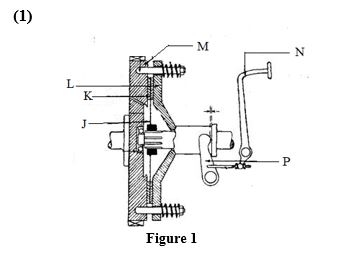

  1. Identify the sketch shown in Figure 1.
  2. Name the parts labelled J, K, L, M, N and P.
  3. State two functions of the flywheel.


(b)

  1. State two merits of a single-plate clutch.
  2. State two purposes of a single-plate clutch.



Observation



The candidates that attempted this question did very well. However, a few of them could not satisfactorily answer questions 1(a)(i) and 1(a)(ii). The required responses to the poorly answered questions are as follows:

(a) (i) Single plate clutch

(ii)

J   is        driven plate.
K    is        clutch lining.
L    is        pressure plate.
M    is        flywheel.
N    is        pedal.
P    is        clutch fork.
