Biology Paper 3 (Practical), May/June 2015

Question 1





    LIST OF SPECIMENS
    Specimen A     -           twig of mango plant.
    Specimen B     -           twig of Ixora plant.
    Specimen C     -           leaf of Hibiscus plant.
    Specimen D     -           hibiscus flower.
    Specimen E     -           green leafy vegetable.
    Specimen F     -           a piece of freshly cut beef.
    Specimen G    -           worker bee (wet preserved).
    Specimen H     -           soldier termite (wet preserved).
    Specimen K    -           adult cockroach (wet preserved).
     Specimen L     -           nymph of cockroach (wet preserved).
    Specimen M    -           young toad (freshly preserved).
    Specimen N     -           scale of bony fish.
    Specimen P     -           freshly preserved mammalian skin preferably of goat or ram with hair/fur measuring at least 4 cm by 4 cm                       placed in a petri dish.
    Specimen S     -          a small amount of garden soil in a petri dish.
    Specimen T     -           orange/lemon/lime/citrus fruit
    Specimen V    -           tomato fruit.
    Specimen W   -           cassava tuber.
    Specimen Xi   -            stem of young cassava plant measuring at least 10cm in length.
    Specimen Xii   -           stem of young cassava plant measuring at least 10cm in length as in Xi.

    QUESTION  1
    Study specimens Aand Bcarefully and use them to answer questions
                            1(a) to 1(e).


    (a)        Classify specimen B into its Division and Class.                    [2 marks]

    (b) (i)  State the types of leaf arrangements in specimens A and B.  [2 marks]
    (ii) Name the leaf shape of specimens A and B.                          [2 marks]

    (c) (i)   State the type of leaf margin in specimen A.                          [1 mark ]
         (ii)            State the types of venation found in the leaves of specimens A and B. [2 marks ]
    (d) (i)   List three observable similarities found in specimens A and B.            [3 marks ]
    (ii)   In a tabular form, state four observable differences between specimens A and B.                                                                                                                   [4 marks]

        (e)        Make a drawing 8 cm – 10cm long of the leaf of specimen A and  label fully.                                                                                                                                                              [9 marks]

Observation

Most candidates could not classify specimen B/twig of Ixora plant into its Division and Class and many that tried could not spell correctly. Most candidates could not answer questions (b) (i) and (ii); (c) (i) and (ii) correctly.

Many candidates could state observable similarities in specimens A and B quite well.

Only a few of the candidates’ drawings were good in question 1(e). Many candidates drew without putting the title of the diagram, the magnification and labelled correctly.

The expected answers are:

  • (a) (i) Division
  • Angiospermatophyta/Angiospermophyta/Magniliophyta
    (ii) Class
    Dicotyledoneae/Magniliopsida

    (b) (i) Types of leaf arrangements
    Specimen A     -           Alternate/Spiral
    Specimen B     -           Decussate/Opposite

      (ii) Leaf shape
    Specimen A     -           Lanceolate/Sword-like
    Specimen B     -           Oval/Ovate

    (c) (i) Type of leaf margin of specimen A
    Entire/Smooth/Wavy
    (ii) Types of venation found in Specimens A and B
    Specimen A     -           Net/reticulate                                                                                                              Specimen B     -           Net/reticulate

    (d) (i) Observable similarities between Specimens A and B

  • Leaves have leaf stalk/petiole/petiolate;
  • Leaf stalk/petiole swollen at the base;
  •

  • Leaves contain chlorophyll/are green in colour;
  • Leaves have entire/smooth margins;
  • Leaves have net/reticulate venation;
  • Leaves have pointed apex;
  • Leaves have prominent midrib;
  • Both leaves are simple.
  •
  • (ii) Observable differences between Specimens A and B

    Specimen A (mango)

    Specimen B (Ixora)

    • Petiole/leaf stalk is long

    Petiole/leaf stalk is short;

    • Leaves have elongated apex/accuminate/acuminate

    Leaves have short apex/acute;

    • Leaves have a narrow lamina/leaf blade

    Leaves have a broad lamina/leaf blade;

    • Spiral/alternate leaf arrangement

    Decussate/ opposite leaf arrangement;

    • Leaves are bigger

    Leaves are smaller;

    Penalty: minus (-) 1 mark for no tabulation.

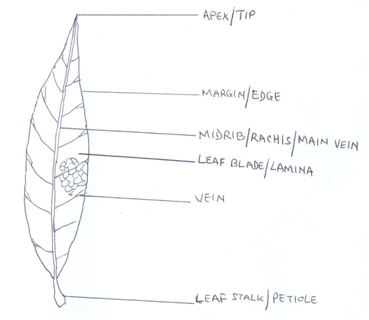

    (e) Drawing/Diagram of leaf of specimen A
    TL- Title



    Quality
    NL- Neat Labels
    CL- Clarity of Lines
    Sz- Size (8-10cm)
    Mg- Magnification (x0.2 – x0.5)/ (x1/5 – x½)


    Details
    TA= Tapering Apex
    NV=Net venation shown
    MT= Midrib tapering to Apex
    LS= Lanceolate Shape

    Labels

    Apex/tip; midrib/rachis/main vein; vein; margin/edge; leaf blade/lamina; petiole/leaf stalk.
