Block laying Paper 2 WASSCE (SC), 2019

Question 5

(a)  State the difference between a dependent and independent scaffold.

(b)  Sketch a section through a drain-pipe laid in a trench and label the following:
(i)         haunch;
(ii)        drain pipe.

(c)  State three functions of a kerb:

Observation

Some candidates were able to:


  • State the difference between a dependent and independent scaffold;
  • State three functions of a kerb.

However, majority of them were unable to Sketch a section through a drain-pipe laid in a trench and label the following:

-           haunch;
-           drain pipe.


5 (a)     The difference between a dependent and independent scaffold:


Dependent scaffold:

  • dependent scaffold rests on the wall for support on one side;
  • the working platform rests directly on putlogs;
  • it has one row of standards.

 Independent scaffold:

  • independent scaffold is self supporting;
  • the working platform rests on transoms;
  • it has two rows of standards.

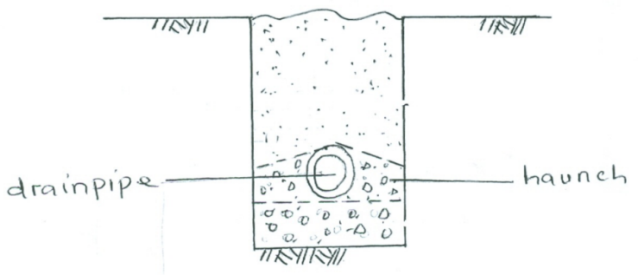

(b)    A section through a drain-pipe laid in a trench and labelling of haunch and drainpipe.


(c) Functions of a kerb:


  • It resists the lateral thrust of the carriageway;
  • It defines the carriage limits;
  • It directs the flow of surface water to gullies;
  • It supports the footpaths and verges;
  • It protects the footpaths and verges;
  • It guides vehicles from skipping off the road.
