Building Construction Paper 1, May/June. 2011
Questions: 1 2 3 4 Main
General Comments
Strength
Weakness/Remedies
Specifications



























































Question 1

  To a scale of 1:50, draw a detailed section A. – A of the building from the
    foundation to the roof.
_____________________________________________________________________________________________________
Observation
      Most candidates were able to: use appropriate conventional symbols to represent
      earth filling, hardcore, concrete slab, and walls in section and flush doors shown
       in elevation.

However, they were unable to:
      -           draw the correct foundation type;
      -           show the parapet walls;
      -           represent the multi-sloped roof.

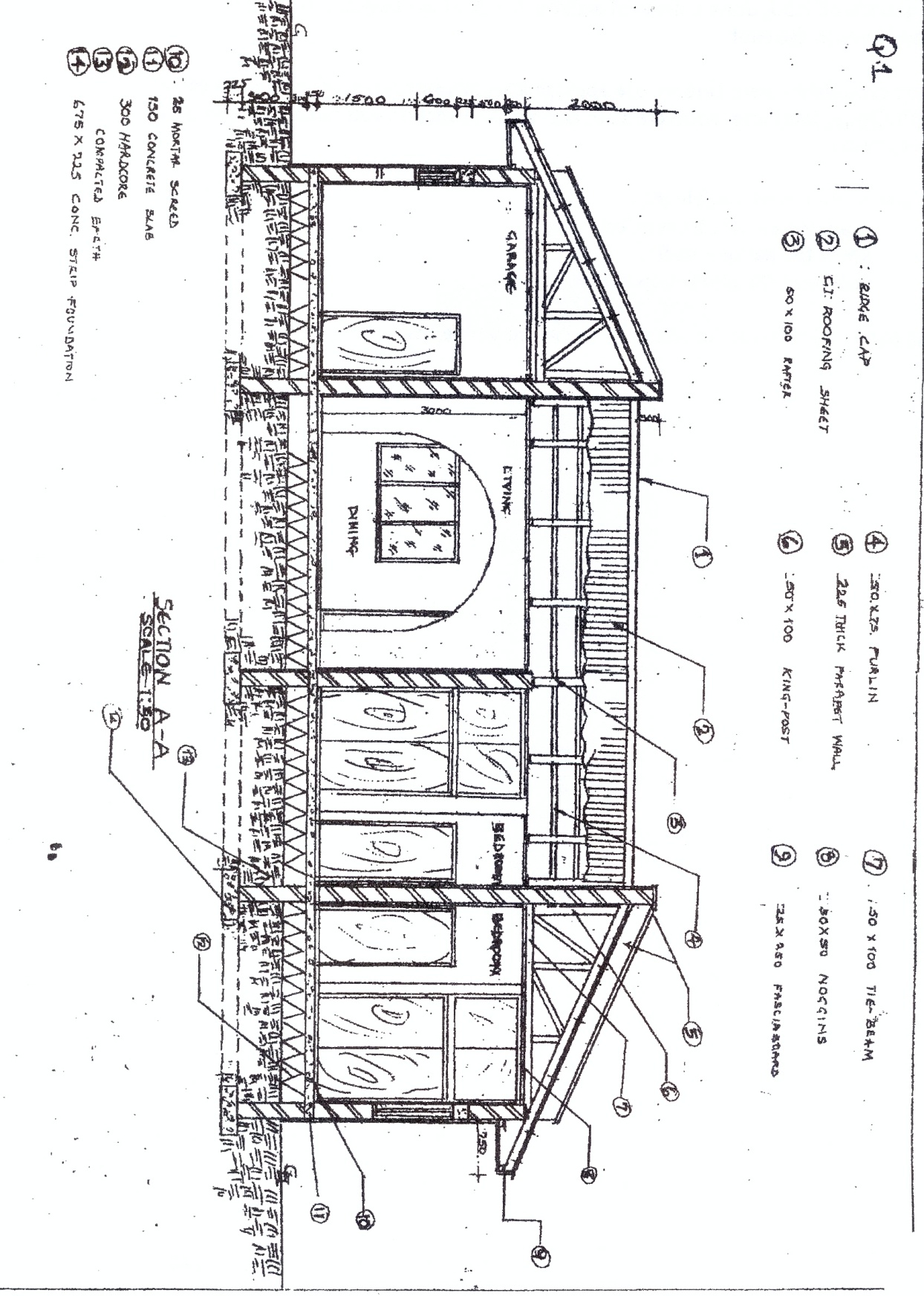

The expected response to question 1 is as shown below:
