Building Construction Paper 1, May/June. 2011
Questions: 1 2 3 4 Main
General Comments
Strength
Weakness/Remedies
Specifications



























































Question 3

  To a scale of 1:100, draw the following views of the building:
    (a)front elevation;
    (b)right-side elevation.



_____________________________________________________________________________________________________
Observation
    Most candidates were able to:

    -           locate the position of doors and windows correctly;
    -           show the glazed metal sliding windows with their correct number of bays.

    However, they failed to:

    -           differentiate the ground level from the floor level;
    -           show the threshold steps and ramp at the entrance door;
    -           represent the parapet walls in elevation;
    -           draw the semi-circular arches correctly;
    -           show the metal balustrade at verandah.

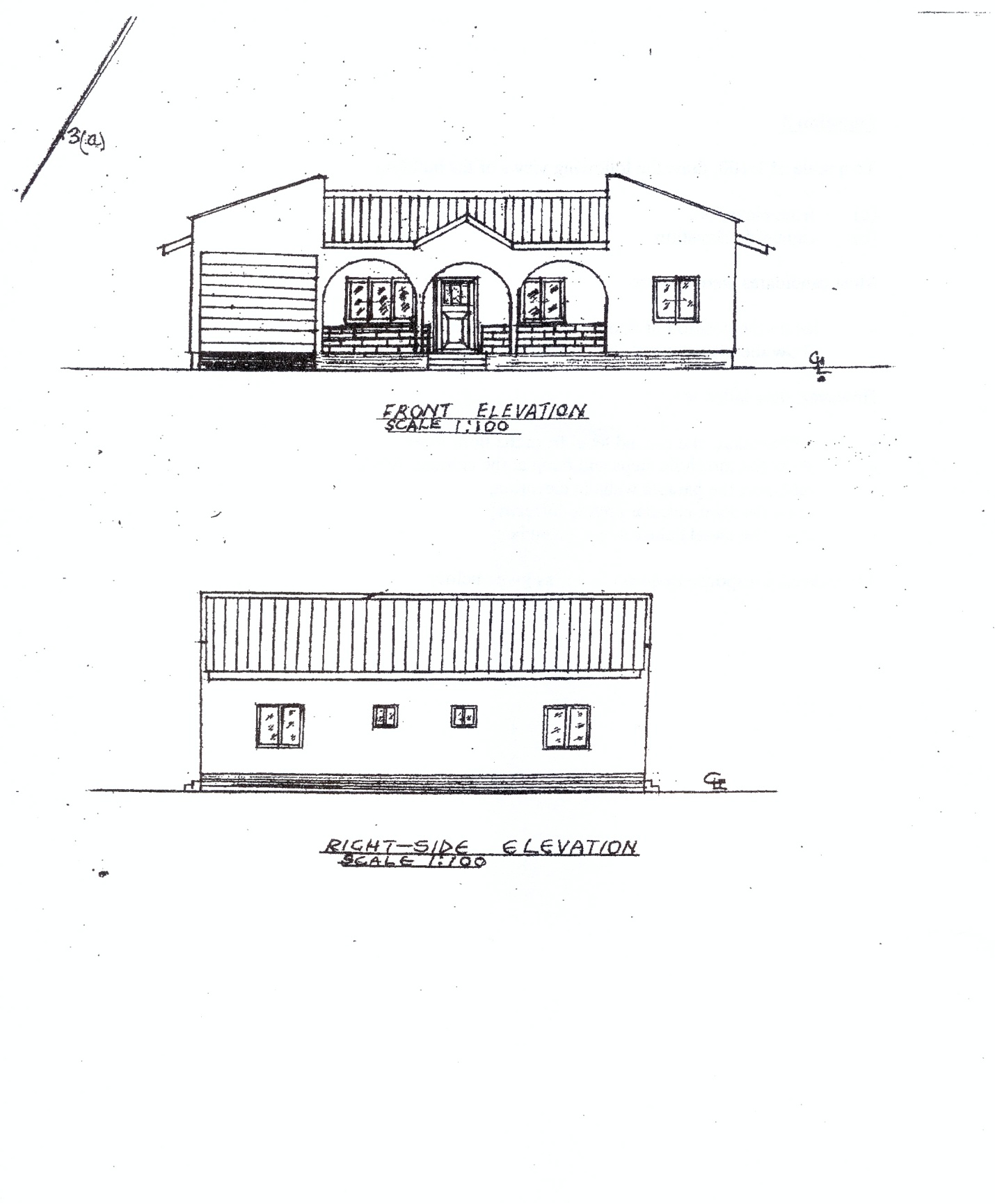

    The expected response to question sis as given below:
