Building Construction Paper 1, May/June. 2012
Questions: 1 2 3 4 5 Main
General Comments
Strength
Weakness/Remedies
Question 3


  1. State the function of a staircase.
  2. Sketch a section through a three step timber staircase and label the following:

(i)

string;

(ii)

tread;

(iii)

riser;

(iv)

nosing.

State three functions of a window.



_____________________________________________________________________________________________________
Observation


Most candidates who attempted the question were able to:
state the function of a staircase; sketch the section through timber staircase; state the function of a window.
398

However, majority of them:
sketched five or six steps timber staircase instead of thnee steps; could not label the given parts.
The expected response to question 3 is as given below:

  1. (a)       Staircase consists of a series  of steps for accessing the  upper floors in a

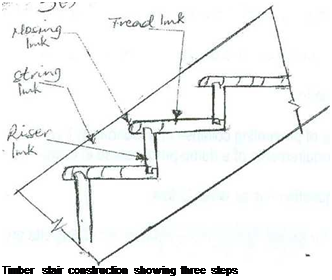

Text Box:    Timber stair construction showing three steps  building. OR it is a series of steps for ascending and descending the upper floors of a building.
_ --------
j-Jtr i*-.*1
i

  1. Function of a window are:

(i)

For viewing outside.

(ii)

To provide privacy.

(iii)

To resist weather.

(iv)

To prevent unwanted guest.

(v)

For aesthetic purposes.

(Vi)

For ventilation and day light.

399
