Building Construction Paper 1, May/June. 2012
Questions: 1 2 3 4 5 Main
General Comments
Strength
Weakness/Remedies
Question 3

    • State two reasons why it is necessary to remove vegetable soil from a building site.
    • With the aid of sketches, describe two methods of preventing the sides of a foundation trench in a clayey soil from collapse.
    • State four functional requirements of a damp proof course in a wall.
_____________________________________________________________________________________________________
Observation


Most candidates who attempted this question were able to:
state the reasons for removing vegetable soii from a building site; use sketches to describe methods of preventing collapse of a foundation
trench;
state the functional requirements of a damp proof course in a wall.
However, some of them failed to:
describe the methods of preventing collapse of a foundation trench, state the functional requirements of a damp proof course in a wall.
The expected response to question 4 is as given below:

  1. (a)       Two reasons for removing vegetable soil from a building site are:
  2. It has a low bearing capacity.
  3. It may cause settlement of the foundation.
  4. It contains organic materials which   are not suitable for

construction of a building.

  1. It is combustible.

400

(b)
U'-'vL


kzrty
build2
_ \i\

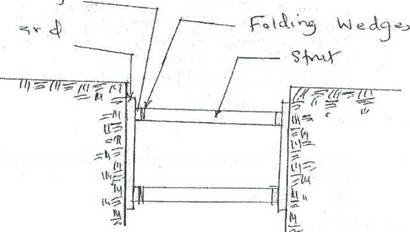

TIMBERING TO A TRENCH

Timber members like poling boards^waiings and struts are arranged in position with folding wedges to keep the sides firmly in position.

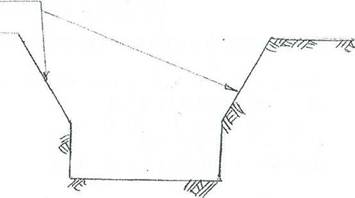

Method (ii) Battering of a trench



image17'ei&.Q ......
\ A                     /£'*** 7'^       j
* Ojj iS'&JZvie.



  1. Functional requirements of a damp proof course in a wall:

(i)

Ability to resist moisture penetration

(ii)

It must be resilient.

(iii)

It should be durable.

(iv)

Ability to withstand heat.

(v)

Ability to withstand imposed load,

(Vi)

Ability to resist perforation/shear.
