Question 4

(a)       Sketch a two-panel door and label the following parts:

  1. panel;
  2. middle rail;
  3. stile;
  4. top rail.



(b)       Use a sketch to illustrate a method of preventing the uplift of a roof by strong winds.

(c)        (i)         State two measures for preventing steel reinforcement bars in concrete floor
                        slabs from pulling out.

    • Sketch to illustrate each of the measures stated in 4 (c) (i).
_____________________________________________________________________________________________________
OBSERVATION

Most candidates were able to:

  • sketch a two-panel door and label the parts;
  • use a sketch to illustrate a method of preventing the uplift of a roof by strong wind;
  • state two measures for preventing steel reinforcement bars in concrete floor slabs  from pulling out;
  • illustrate the measures for preventing steel reinforcement bars in concrete.



The expected response to question 4 is as given below:

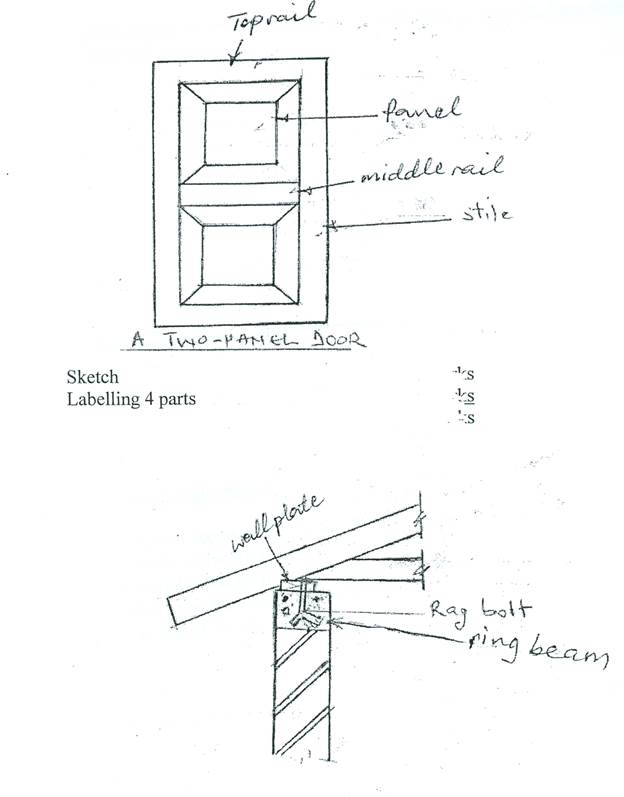

4(a)





(b)

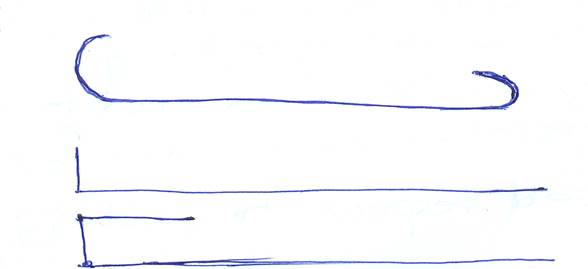

(c) (i)   Measures for preventing steel reinforcement bars in concrete floor slabs from pulling out are:

(1)       Forming hooks in the steel bars;
(2)       Using deformed bars in the concrete;
(3)       Bending the ends of the bars;
(4)       Using twisted bars in the concrete.
