Question 2

Question 2

Draw, to a scale of 1:100, the detailed floor plan of the building.


_____________________________________________________________________________________________________
OBSERVATION

Most candidates were able to:

            -           lay out both the external and internal walls on plan correctly;
            -           label the various room spaces of the building.

            However, they were unable to:

            -           dimension the floor plan;
            -           show the columns and threshold steps;
            -           show the sectional line X – X.

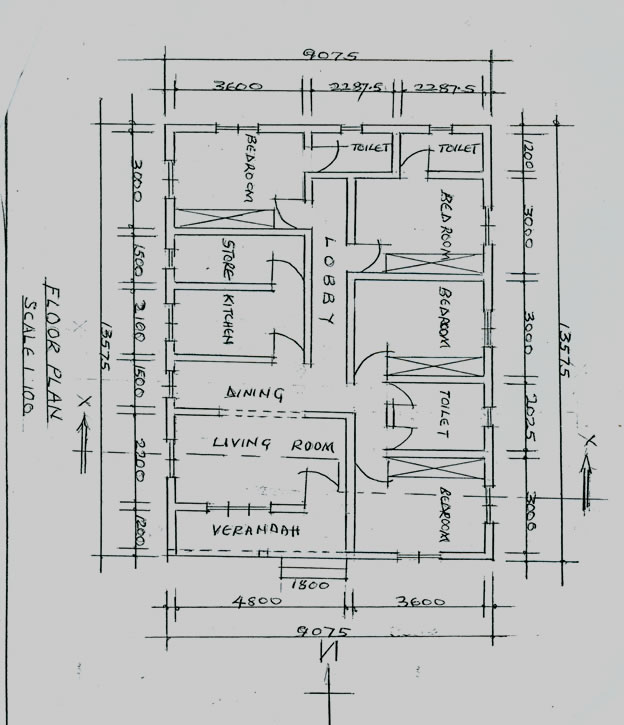

  The expected response to question 2 is as shown below:
