Building Construction Paper 3,May/June 2014
Questions:   1 2 3 4 5   Main
General Comments
Weakness/Remedies
Strength




Question 3

Question 3

Draw to a scale of 1:100, the following views:

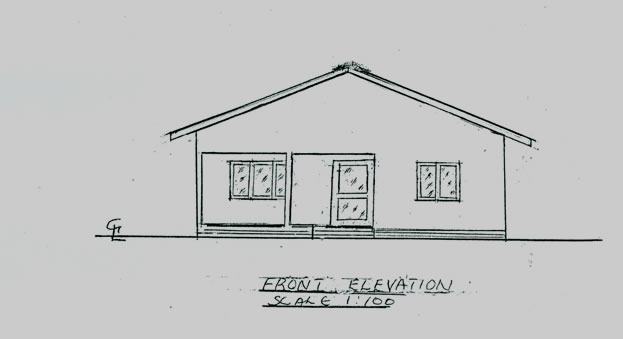

  1. front elevation;

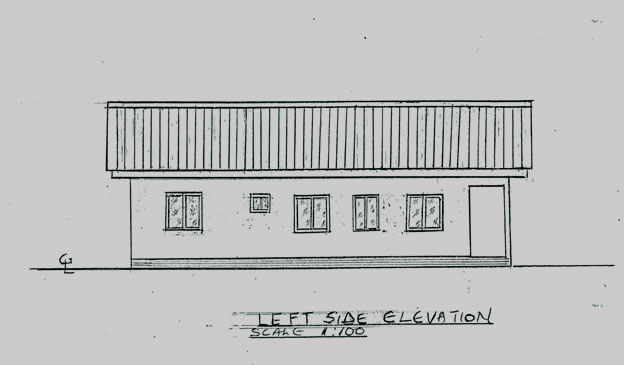

  2. left side elevation.


_____________________________________________________________________________________________________
OBSERVATION

Most candidates were able to:

-           produce the elevations;
-           show the doors and windows in their appropriate locations;
-           show the eaves projection over the external walls;
-           conform to the given specifications.

However, they were unable to:

-           distinguish the floor level from the ground level;
-           show the middle concrete column which supports the concrete beam at the verandah;
-           show the fascia board and ridge-cap on the roof.

The expected response to question 3 is as shown below:
