Question 1





1.         To a scale of 1:50, draw the detailed section A – A of the building from the foundation to the roof.

_____________________________________________________________________________________________________
OBSERVATION

 Majority of the candidates were able to:


  • draw the timber roof truss correctly;
  • show the flush door in elevation;
  • show the end view of both the ramp and threshold steps.

However, some of the candidates failed to:

  • show the blinding beneath the strip foundation;
  • represent the balustrade in section;
  • label the roof members drawn in section.

The expected response to question 1 is as given below:

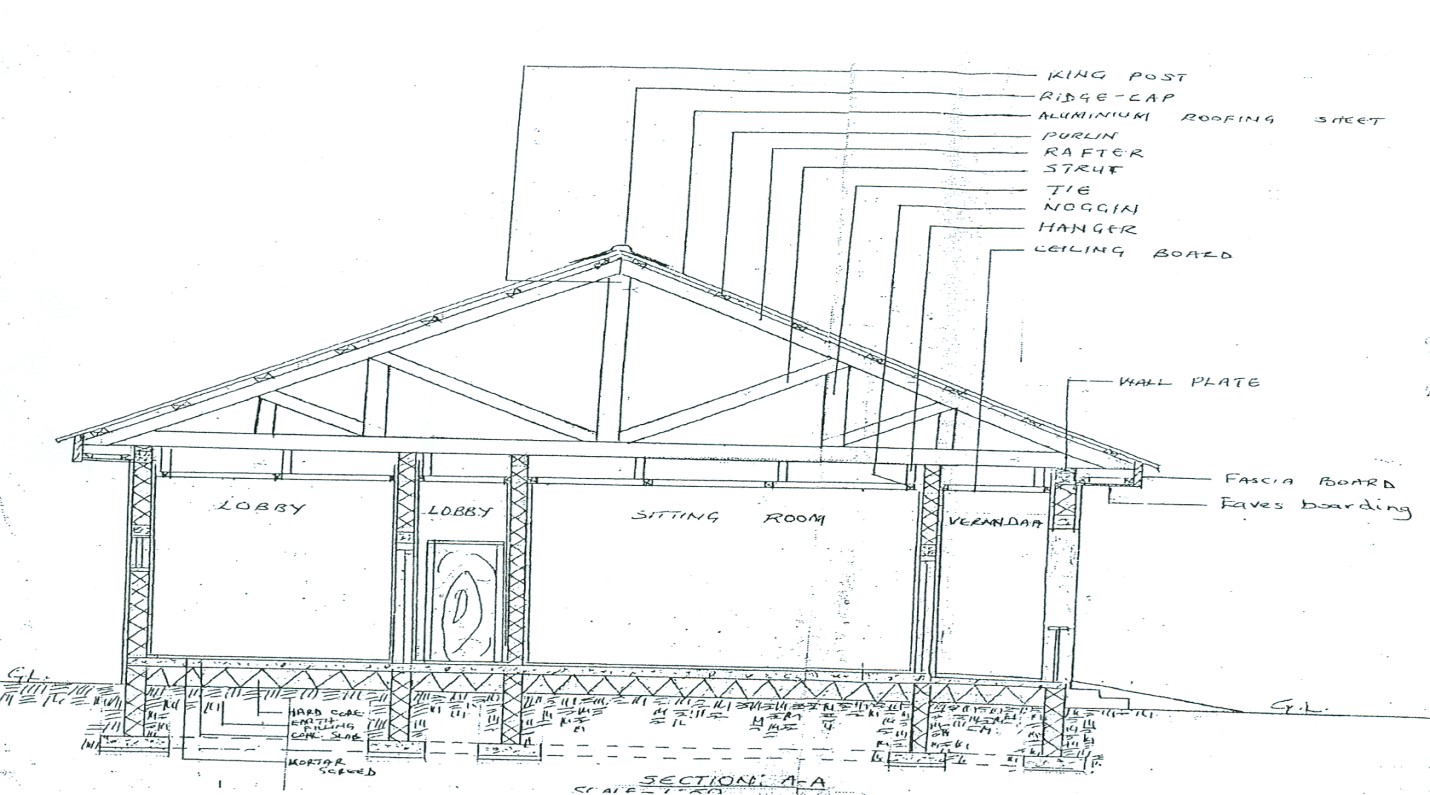

Q1       SECTION A – A (FOUNDATION TO ROOF)
