Building Construction Paper 3,Nov/Dec. 2014
Questions:   1 2 3 4   Main
General Comments
Weakness/Remedies
Strength




Question 3



3.         Draw, to a scale of 1:100, the following views:

(a)       front elevation;
(b)       right side elevation.



_____________________________________________________________________________________________________
OBSERVATION

Few of the candidates were able to:

            -           position the doors and windows correctly;
            -           show the verandah recess and metal balustrades properly.

However, majority of the candidates failed to:

            -           distinguish the ground level from the floor level;
            -           show the over-head roller-shutter garage door in elevation;
            -           show the facia board and the ridge-cap.

The expected response to question 3 is as shown below:

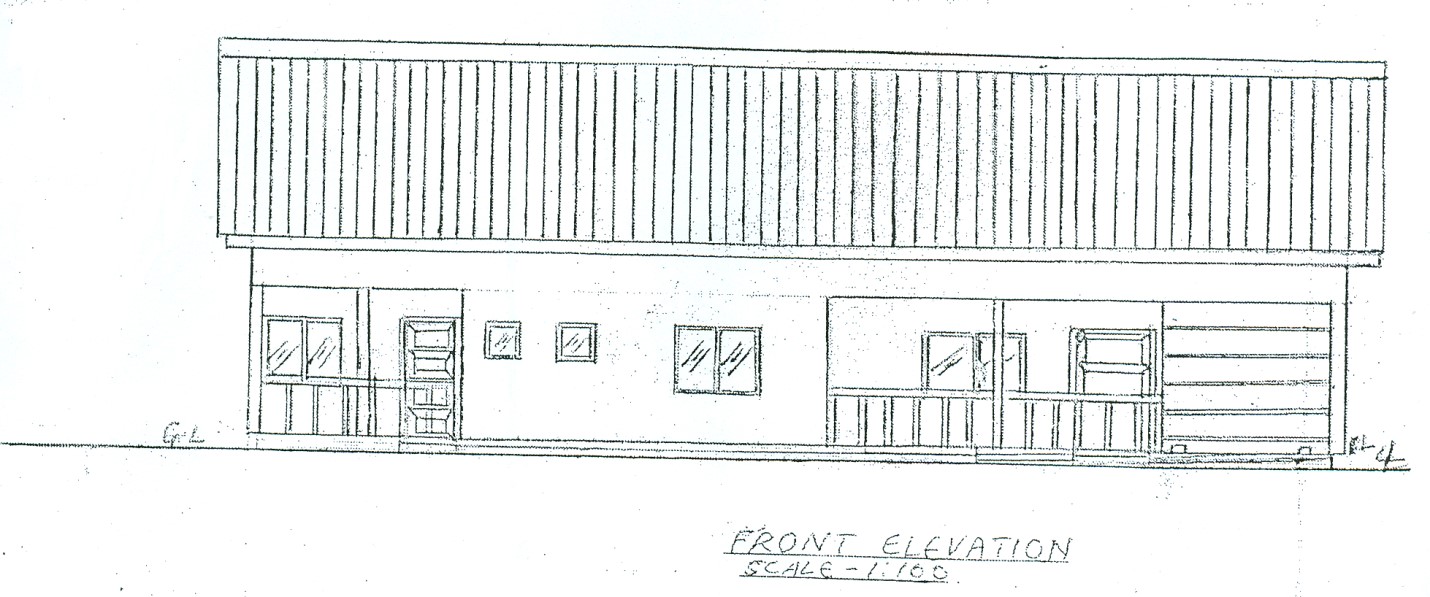

                       Q3 (a) FRONT ELEVATION

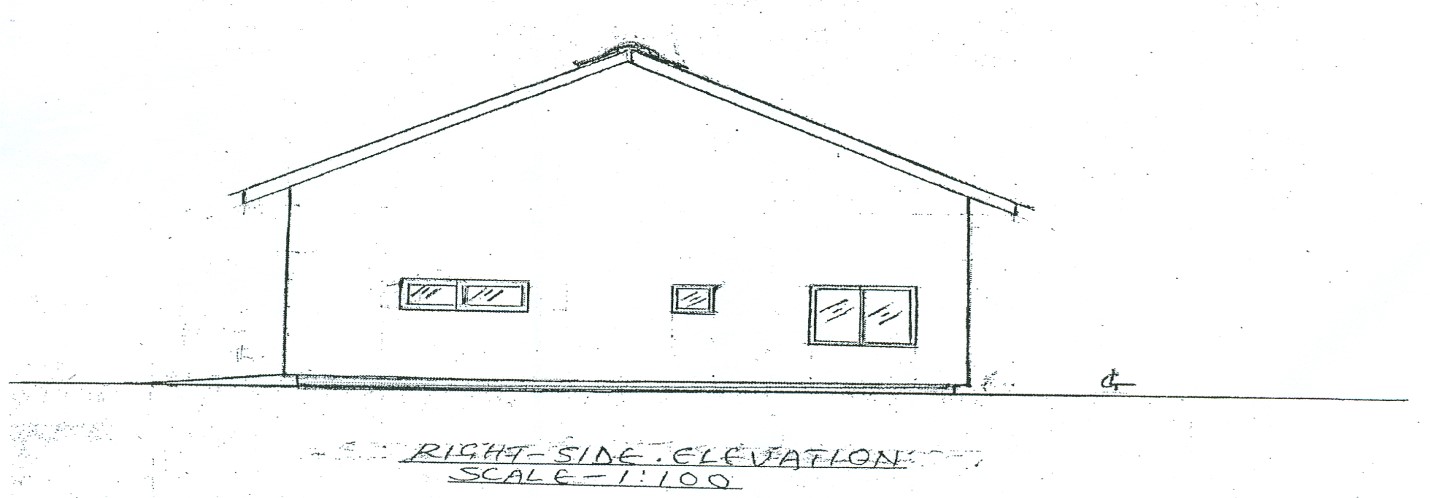

(b)       RIGHT SIDE ELEVATION
