Question 2



          Draw, to a scale of 1:100, the detailed floor plan of the building.

_____________________________________________________________________________________________________
OBSERVATION

Most candidates were able to:

  • draw both the external and internal walls perfectly;
  • Indicate the garage door ramp and wardrobes correctly with their conventional symbols.

However, few candidates were unable to:

  • label the room spaces on the floor plan ;
  • dimension the floor plan;
  • indicate the drawing title.

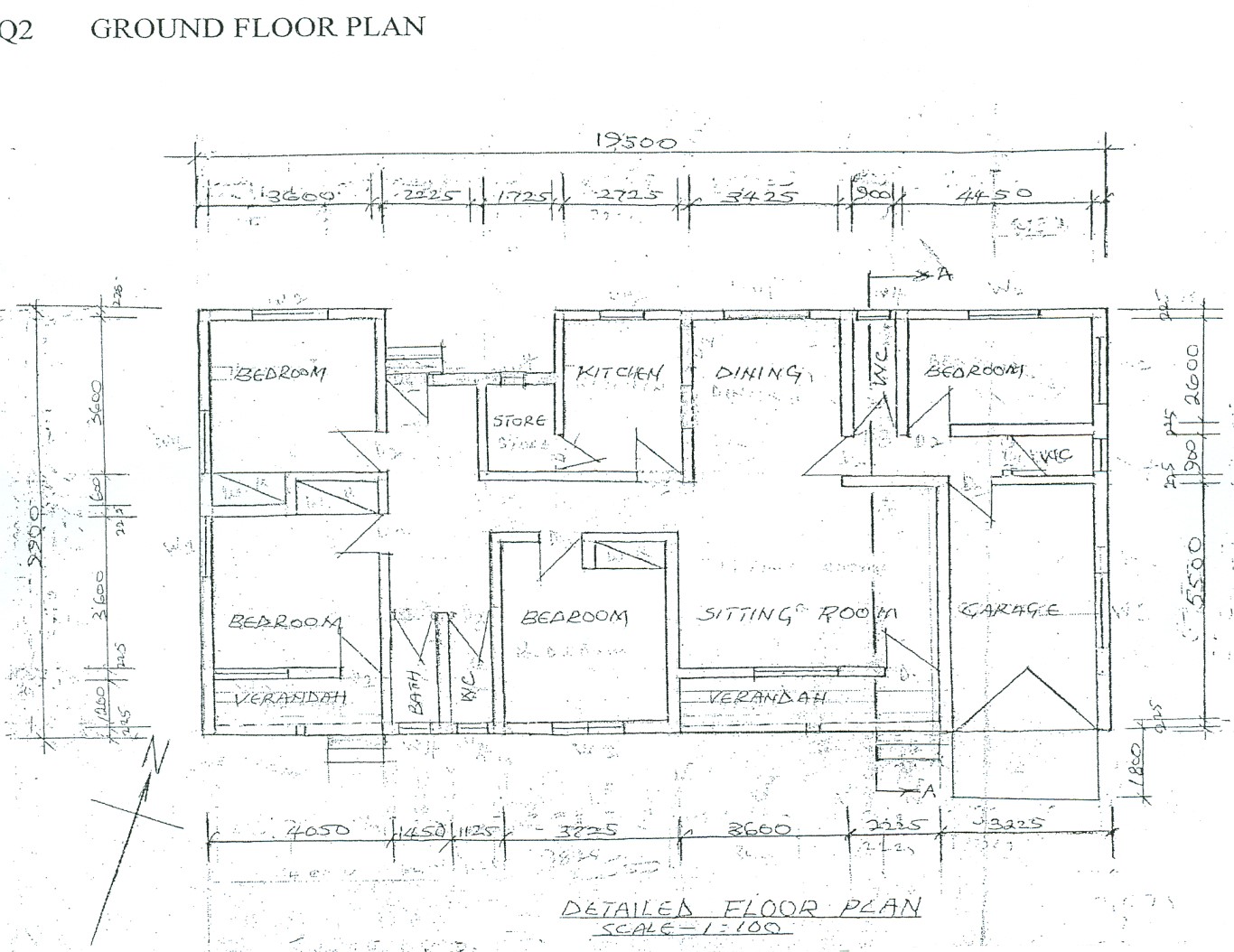

The expected response to question 2 is as shown below:
