building construction Paper 3 WASSCE (SC), 2023

Question 3



Draw to  a scale of 1:100, the following views of the building:

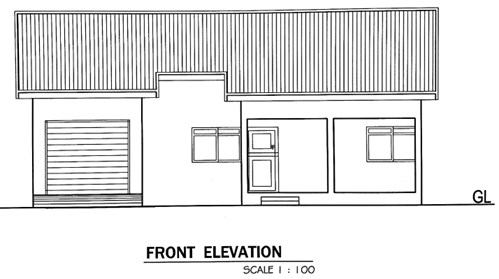

  1. front elevation;
  2. left side elevation.

Observation



Majority of the candidates performed impressively by;

  • showing the doors and windows in their correct locations;
  • representing the beams and colunms properly;
  • indicating the drawing tittle.

However, some of  the candidates failed to:
-          distinguish the ground level from the floor level;
-           failure to show the ramp and threashold steps in elevation;
-           show graphically the recessed part of the wall.

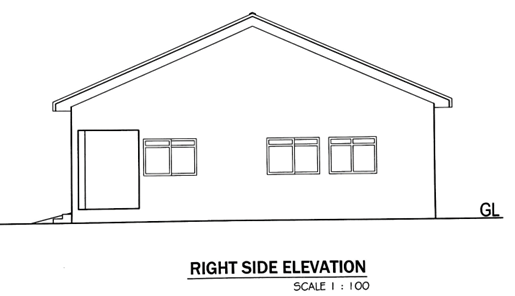

The expected response to question 3 is as given below:
