building construction Paper 3 WASSCE (SC), 2023

Question 4



To a scale of 1:25, prepare the doors and window schedule.



Observation



Some of them did well by:

- producing the sketches of each type of doors and windows correctly;
- providing a correct description of the doors and windows correctly;
- indicating the sizes of the doors and windows.



Many of the candidates that attempted this questions failed to:

-           prepare the schedule by using the conventional format;
-           produce the doors and windows sketches to scale 1:25 specified;
-           indicate the quantity of each door and window type required for the building.ground.

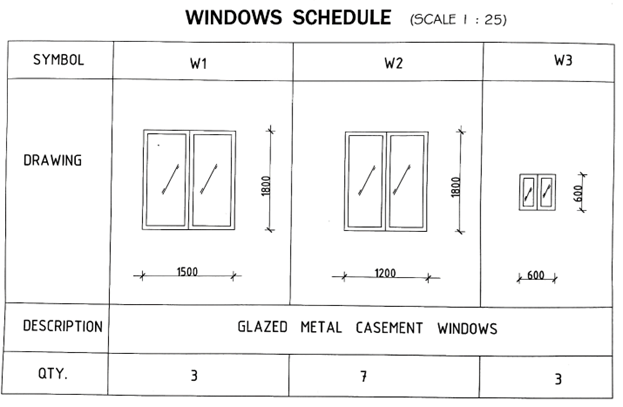

The expected response to question 4 is as given below:
