Elect Installation & Maintenance Work Paper 2, May/June 2014
Questions: 1 2 3 4 5   Main
General Comments
Weakness/Remedies
Strength













































Question 4

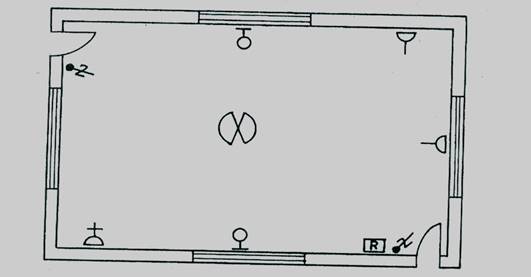

  • Study carefully the electrical layout of a living room as shown below.  A surface

wiring system is to be used for the installation.
























  • Prepare a key for the layout.
  • List the quantities of each of the fittings on the layout.
  • Sketch a labelled circuit diagram showing how the lamps in the layout can be controlled independently in parallel.
  • (i)         Mention the instrument required for carrying out insulation resistance test                            for the installation.

(ii)        State the minimum acceptable value for insulation resistance.

  • What is the maximum height specified by IEE regulations for the following electrical devices from finished floor level?
  • Switches;
  • 13A sockets;
  • 15A sockets.
  • State two precautions needed for proper electrical installation in the room.



_____________________________________________________________________________________________________
Observation

This is a test of practical question.  Majority of the candidates that attempted this question could not correctly interprete the electrical drawing.  However, a few candidate did well in answering this question.













The expected answers include:

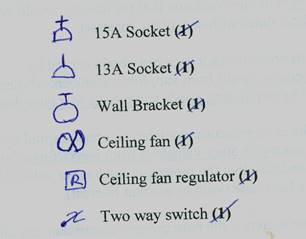

4 (a)



                     (b)           15A socket                  -           1
                                    13A socket                  -           2
                                    Wall bracket                -           2
                                    Ceiling fan                  -           1
                                    Fan regulator               -           1
Two-way switches      -           2

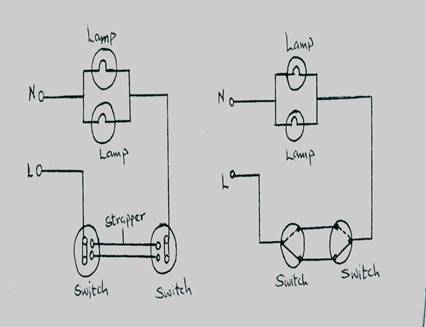

         (c)


















 (d) (i)              Megger tester/installation resistance tester
       (ii)             0.5 megger  ohm OR  500,000?

  (e) (i)             1200 mm – 1500mm / 120cm – 150cm
       (ii)             450mm – 500mm / 45cm – 50cm
       (iii)            450mm – 500mm / 45cm – 50cm
  (f)                  -           tighten all connector terminal/avoid partial contact;
                        -           tighten all sitting of fittings;
                        -           ensure that fittings are properly connected to the right polarity;

  •       ensure that fittings are properly aligned to the sittings;
  •       ensure neatness of finished fittings;
  •       ensure that conductors  are not live before commencing testing;
  •      ensure that the correct tools are used for the right task;
  •      avoid naked conductors in the installations;
  •      ensure good insulation resistance for the installation;
  •      ensure effective earthing system.
