Elect Installation & Maintenance Work 2, WASSCE (SC), 2023

Question 4

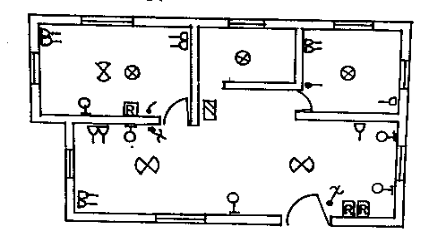

  1.             (a)        The diagram below illustrates an electrical layout of a one-bedroom apartment. Study it and answer the following questions.

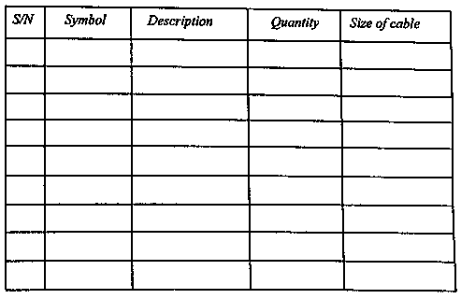

Prepare a legend of the layout in the table below.



(b)          State faults that could cause a split-phase motor to hum.

(c)          How does a shaded pole motor run?




Observation



  4(a): The majority of the candidates excelled in describing the symbols utilized in electrical layout.
4(b): Many candidates were unable to accurately identify the faults that could lead to a split-phase motor humming.
4(c): Many candidates struggled to provide a clear explanation of how a shaded pole motor operates.

The expected answers include:

Expected response:
(a)

S/N

Symbol

Description

Quantity

Size of cable

1

Fan regulator

3

1.0 mm2 / 1.5 mm2

2



Fan

3

1.0 mm2 / 1.5 mm2

3



Twin 13 A socket

5

2.5 mm2

4

13 A socket single

2

2.5 mm2

5

Ceiling mounted fitting (lamp/bulb)

3

1.0 mm2 / 1.5 mm2

6

Wall bracket

5

1.0 mm2/ 1.5 mm2

7



Consumer unit

1

4.0 mm2

8

2 way switch

2

1.0 mm2 / 1.5 mm2

9



1 way switch

3

1.0 mm2 / 1.5 mm2





(b).FAULTS THAT COULD CAUSE A SPLIT PHASE MOTOR TO HUM

    1. Open starting winding
    2. Grounded starting winding
    3. Burnt out starting winding
    4. Insufficient voltage
    5. Lack of grease/ceased/faulty bearing
    6. Mechanical overload/excess load
    7. Fault in transmission equipment
    8. Burnt switch contact
    9. Stuck centrifugal switch
    10. Misalignment or bent shaft

(c) HOW A SHADED POLE MOTOR RUNS

It runs from the unshaded to the shaded pole O R
When an a.c. is applied to the stator winding, a rotating magnetic field is generated.
