Basic Electronics Paper 2, WASSCE (SC), 2017

Question 2



  1. State Kirchhoff’s current law.

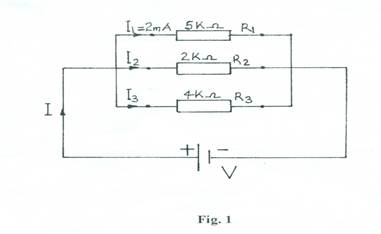

  2. In figure 1, calculate





  1. V;
  2. I2;
  3. I3;
  4. I.



Observation



  1. Kirchhoff’s current law:

              The algebraic sum of currents flowing into a node in a circuit is zero.
OR
The algebraic sum of currents flowing out of a node is zero
OR
The sum of currents flowing into a node is equal to sum of current flowing out of the
node.
