Basic Electronics Paper 2, WASSCE (PC 2ND), 2018

Question 2



(a)        State one difference between direct current and alternating current.

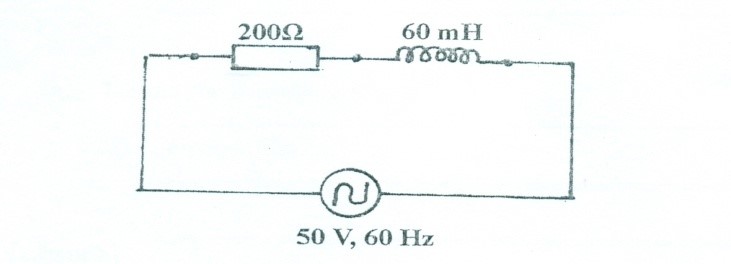

(b)        Fig. 1 is a series RL circuit.



Calculate the:
(a)      inductive reactance;
(b)      impedance;
(c)      phase angle.





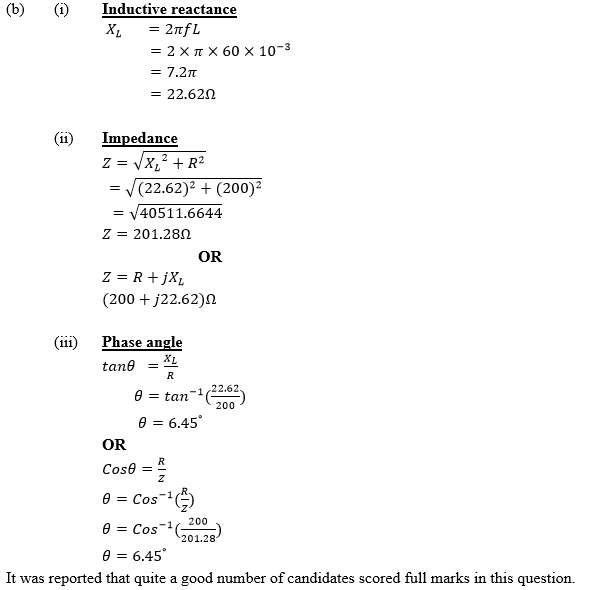

The expected responses were:

  1. Differences between direct current and alternating current


    Direct current

    Alternating current

    Has steady magnitude/amplitude

    Varies in magnitude/amplitude

    Does not change in polarity

    Periodically changes in polarity

    Has no frequency

    Has frequency

  2.
