Question 11

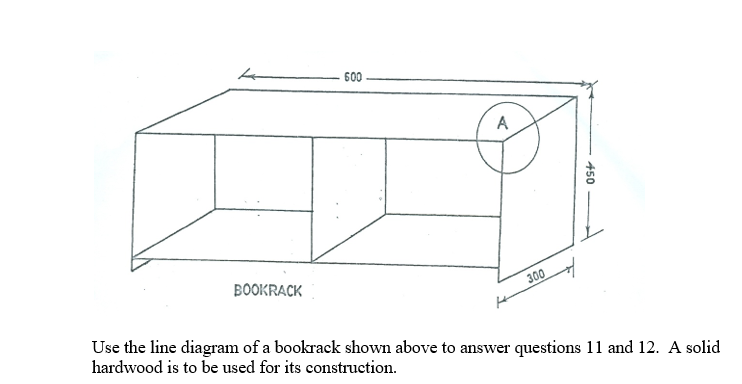

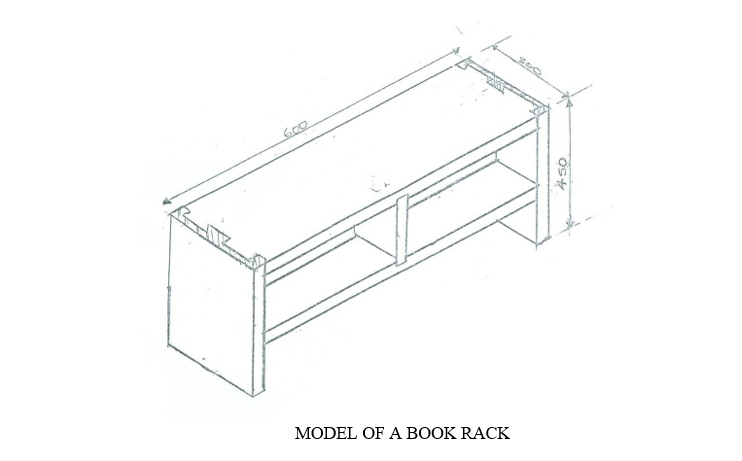

(a) Make a preliminary pictorial sketch of the bookrack.
(b) To a scale of 1:5, draw in first angle orthographic projection, the following views of the book rack:
- front elevation;
- plan;
- sectional end elevation.
Observation
This question was compulsory and it was well attempted by most of the candidates could not give correct responses to the whole question.
Candidates performance was okay.

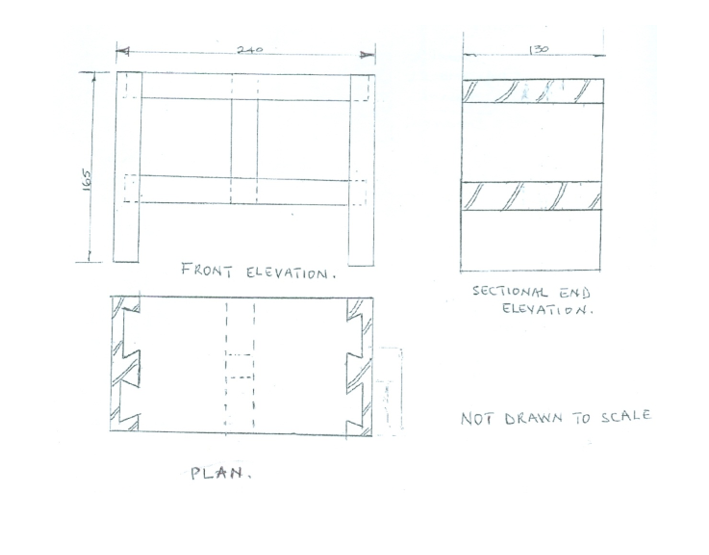

Candidates were expected to give the responses as shown below:
