Metal Works 3, WASSCE (SC), 2016

Question 1



1.         The following materials are supplied:
(a)        flat mild steel plate, 95mm x 60mm x 3mm (2 OFF);
(b)        one cotton bag, 120 mm x 70 mm to enclose the finished work;
(c)        two tie-on labels.

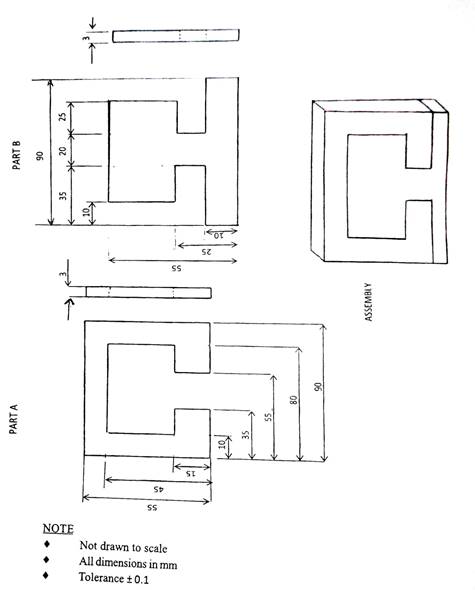

The diagram below shows the assembly and detailed views of each part of a fitting exercise. Using the materials supplied, prepare the parts and assemble the pieces.

Observation



Majority of the candidates attempted this question. They were able to cut and file the parts.
