Metal Works 3, WASSCE (SC), 2016

Question 2



The following materials are supplied:
            (a)        one piece free cutting mild steel rod, Æ50mm x 85mm;
            (b)        one cotton bag 120mm x 70mm to enclose the finished work;
            (c)        two tie-on labels.

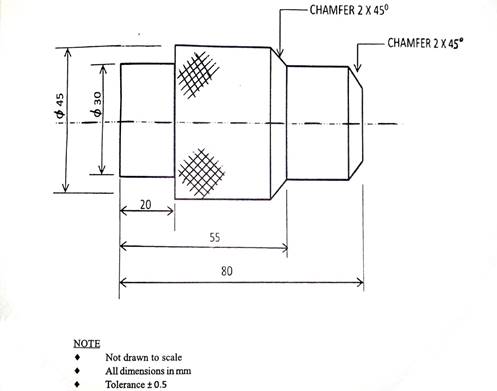

The diagram below shows the detailed view of a machine part. Produce the part using the material supplied.

Observation



One candidate attempted this question with good performance.
