Physics (Essay) Paper 2 May/June 2015

Question 6



(a) What is doping in a semi-conductor?
(b) Draw the symbol for OR gate.

Observation

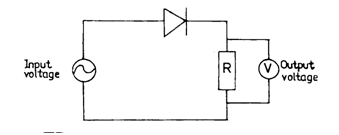

The circuit above consist of an a.c. voltage input, a diode, a resistor and a voltmeter.

physdiagram02

  •   Identify the circuit.

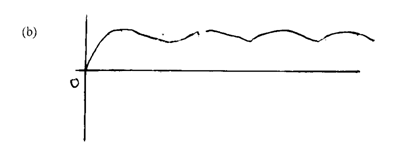

  •  Draw the waveform for the output voltage.
  • The expected answer is:

      Half-wave rectifier (circuit)

    physdiagram03
