Physics (Essay) Paper 2 WASSCE (SC), 2016

Question 7



.

.

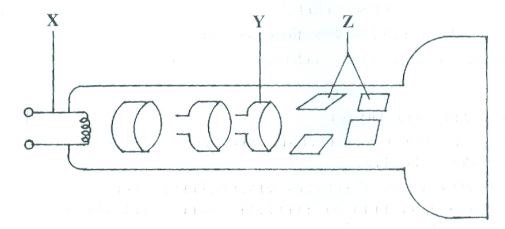

The diagram above illustrates a cathode ray tube



Identify the components X, Y and Z



Observation

Majority of the candidates did not attempts this question and less than 50% of the candidates who attempted it scored full mark. The performance was low. Interestingly, this was a repeated question, showing that prospective candidates did not revised with past question papers.





The expected answer is

X = Filament or heater
Y = Anode
Z = Plates or deflectors
