Physics (Essay) Paper 2 WASSCE (PC), 2022

Question 11



(a)        State two uses of electromagnets.

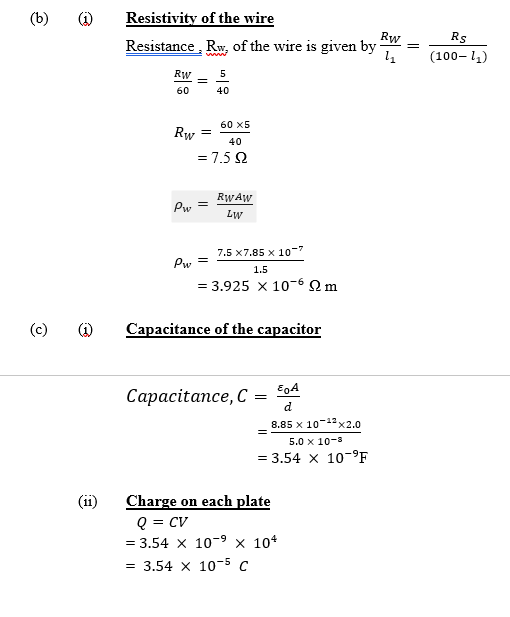

(b)       A resistance wire has a length of 1.5 m and cross-sectional area of 7.85 x 10-7m2. If the wire is connected across the left gap of a metre bridge and a 5 Ω resistor across the right gap, a balance point of 60.0 cm from the left side of the bridge wire is obtained. Calculate the resistivity of the wire.
(c)       The plates of a parallel plate capacitor each of are 2.0 m2 are 5.0 x 10-3m apart in air. If the p.d. across the plates is 10 kV, calculate the:
(i )  capacitance of the capacitor;
(ii)  charge on each plate;

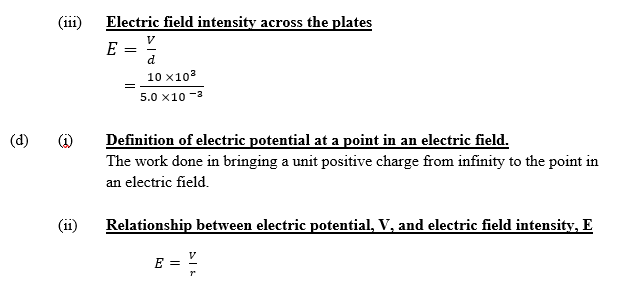

(iii) electric field intensity across the places.

(d) (i)  Define electrical potential at a point in an electric field.
      (ii) State the relationship between electric potential, V and electric field intensity,E.



Observation



The expected response:

(a)   (i)         Uses of electromagnets

 Used in:

  • electric bell.
  • telephone earpiece.
  • lifting heavy objects(metallic) in industry.
  • separating metals from non-metals.
  • transformers.
  • relays.
  • buzzers.
  • loud speakers.
