Plumbing and Pipe Fitting 3, WASSCE (SC), 2017

Question 1



The following materials have been provided for this exercise:
(a)        25 mm PVC pipe 2m long      -           1 no;
(b)        25 mm PVC air valve             -           1 no;
(c)        25 mm PVC tee                      -           1 no;

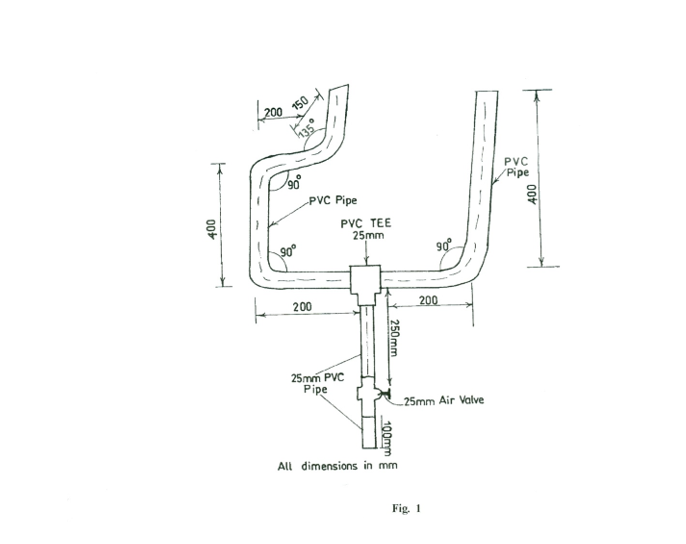

Using a push fit pipe jointing technique, cut and bend the pipe to shape as shown in Fig. 1.

diag

Observation

Most of the joints on the workpieces were weak/poorly done. Proper application of adhesives and bending are necessary for better products.
