Question 2

The following materials have been provided for this exercise:

            (a)        one1000 mm length of 25 mm diameter PVC pipe;
(b)        one  25 mm plain and threaded socket;
(c)        one 25 mm PVC stop valve
(d)       one 25 mm PVC elbow;
(e)        one 25 mm PVC hexagonal elbow;
(e)        one tin of adhesive paste;
(f)        two tie-on label.

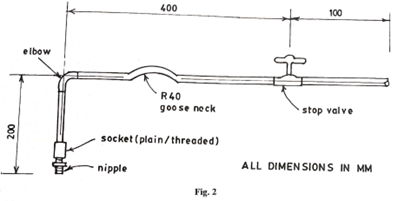

Using push-fit pipe joining technique, measure, cut and bend and fix the length of 25 mm diameter PVC pipe as shown in Fig. 2
