Plumbing and Pipe Fitting 3, WASSCE (SC), 2023

Question 3



The following materials have been provided for this exercise:


  1. one 1700 mm length of 25 mm PVC pipe;
  2. two 25 mm PVC tee;
  3. one 25 mm PVC union connector;
  4. one 25 mm PVC elbow;
  5. one tin of adhesive paste;
  6. two tie-on label.

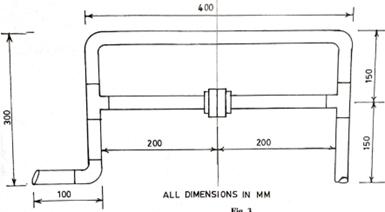

Using a push-fit pipe jointing technique, cut and fix the length of 25mm PVC pipe as shown in Fig. 3.


Observation



Few of the candidates that attempted this question did well.
