Radio,Television And Electronic Paper 2, WASSCE (SC), 2017

Question 3.





  1. Fig. 3 is a graph of voltage against current.


State the:

  1. Physical quantity defined by the slope of the graph;
  2. Condition under which a material will behave as shown in Fig. 3;
  3. Type of material that behaves as shown in Fig. 3.
  1. Fig. 4 is a structural diagram of a transistor


Draw and label the:

  1. Circuit symbol for the transistor;
  2. Transistor in common emitter configuration.



Observation

The expected answers were:

(a) (i) Resistance
     (ii) Constant temperature/pressure
     (iii) Metals/conductors

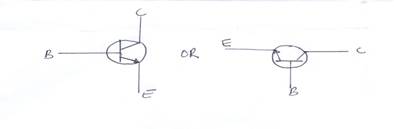

(b) (i) Circuit symbol of the transistor

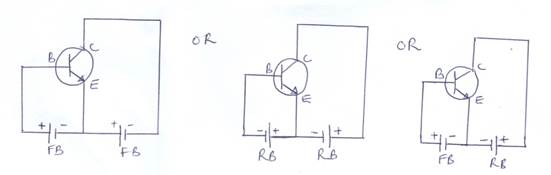

(ii) Transistor biased in common emitter configuration

(c) Applications of a transistor

  • Switching circuits
  • Multivibrators
  • Oscillators
  • Amplifier circuits
  • Voltage regulator
  • Inverter
Many of candidates that attempted this question responded poorly.
