Technical Drawing Paper 1, May/June 2011
Questions: 1 2 3 4 Main
General Comments
Strength
Weakness/Remedies






Question 1

   (a) The perimeter of an isosceles triangle PQR is 120 long and its vertical height is 50.
   Construct the triangle.     [8marks]

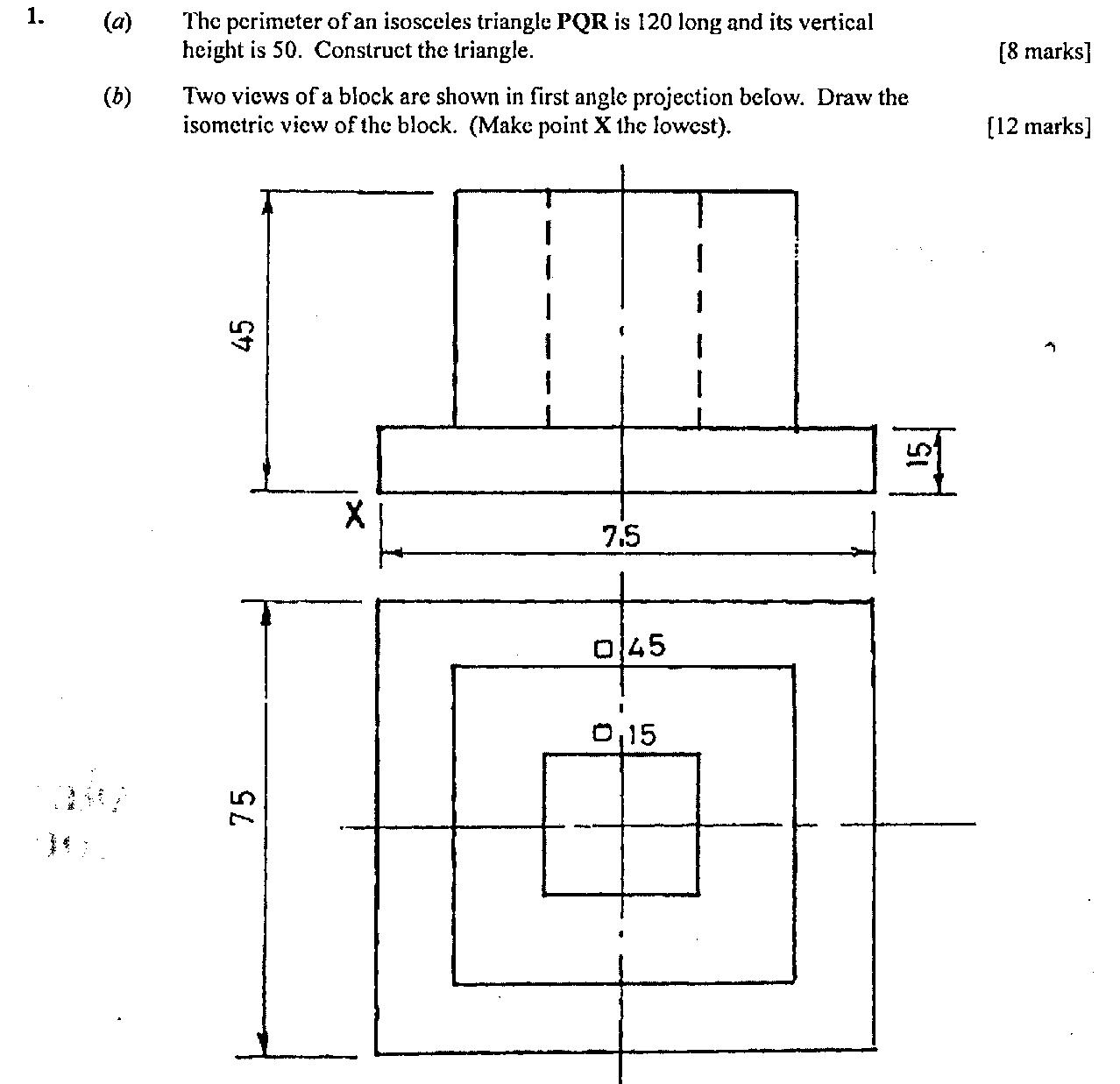

   (b) Two views of a block are shown in first angle projection below. Draw the
   isometric view oof the bock. (Make point X the lowest).     [12marks]


_____________________________________________________________________________________________________
OBSERVATION

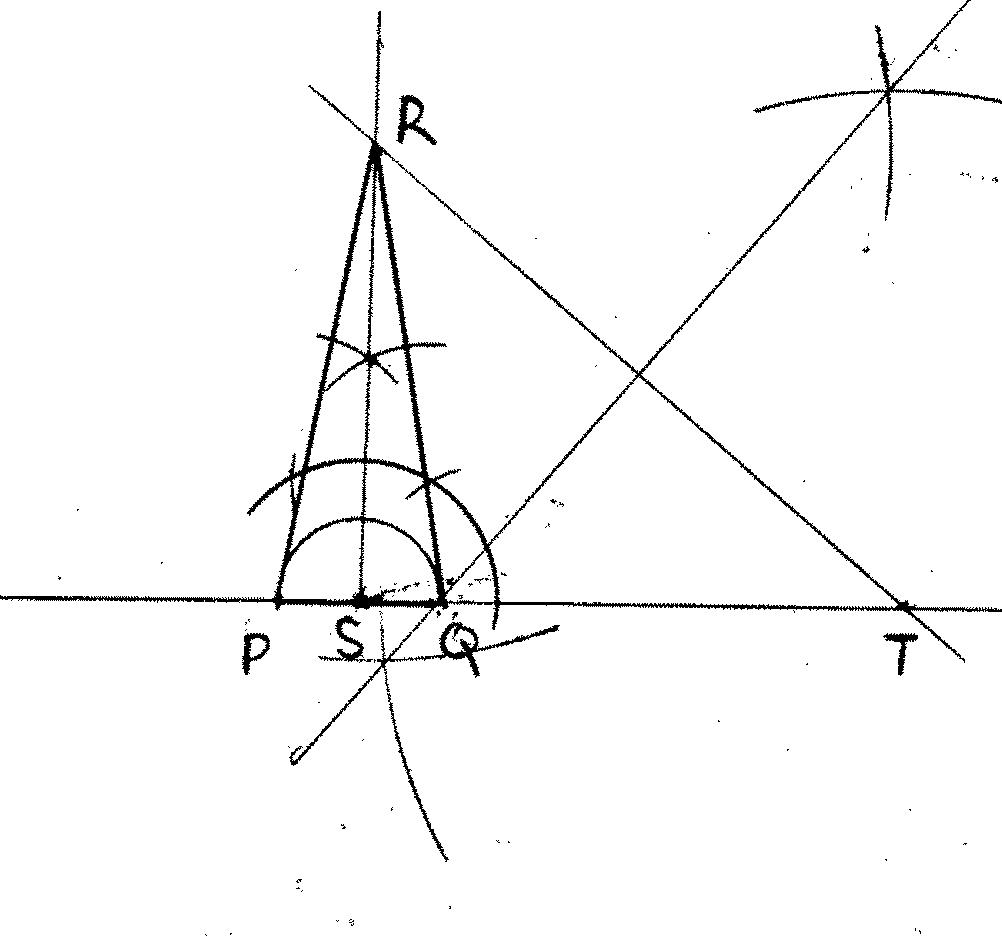

   1a.Candidates were required to construct an isosceles triangle , given the perimeter and the altitude . The procedure is to make bisections to locate a point  above the base as shown below.  Majority of the candidates got the solution correctly

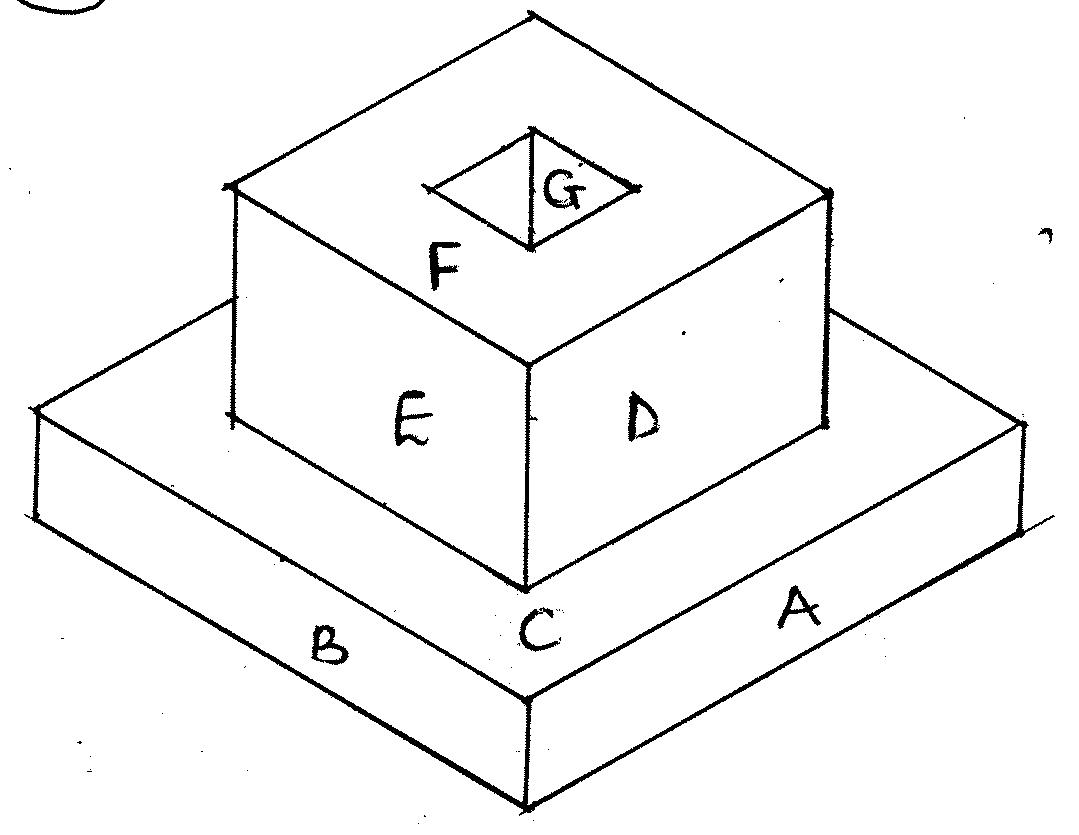

   1b.This question required a candidate to draw an isometric block from the given orthographic view. They could either draw an isometric box or isometric axes as starting point. The given dimensions would then be used to mark off various parts as shown in the solution below.
