Question 2

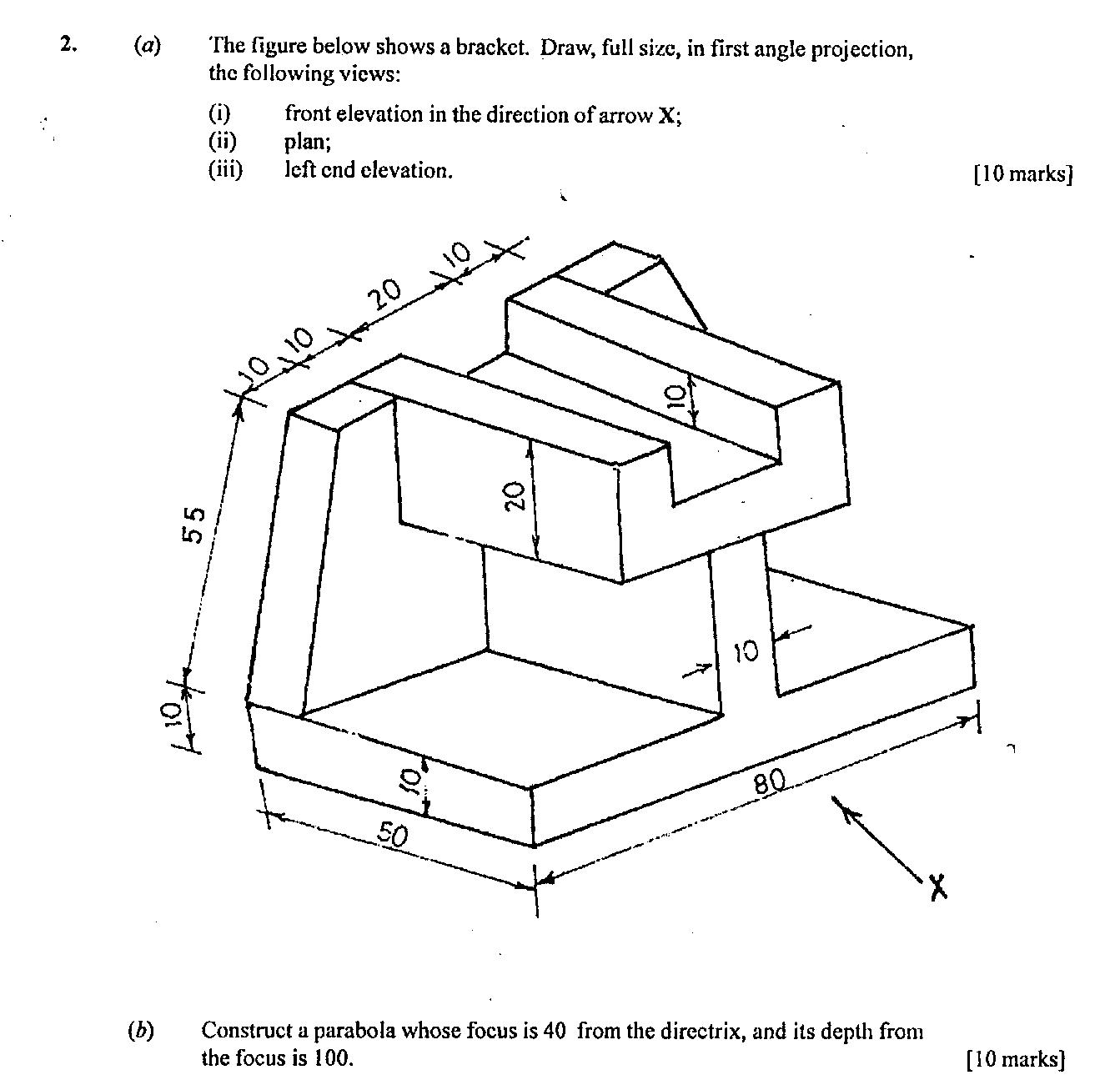

   (a) The figure below shows a bracket. Draw, full size, in the first angle projection, the following views.
        (i) front elevation in the direction of the arrow X ;
        (ii) plan;
        (iii) left end elevation.            [10marks]


_____________________________________________________________________________________________________
OBSERVATION

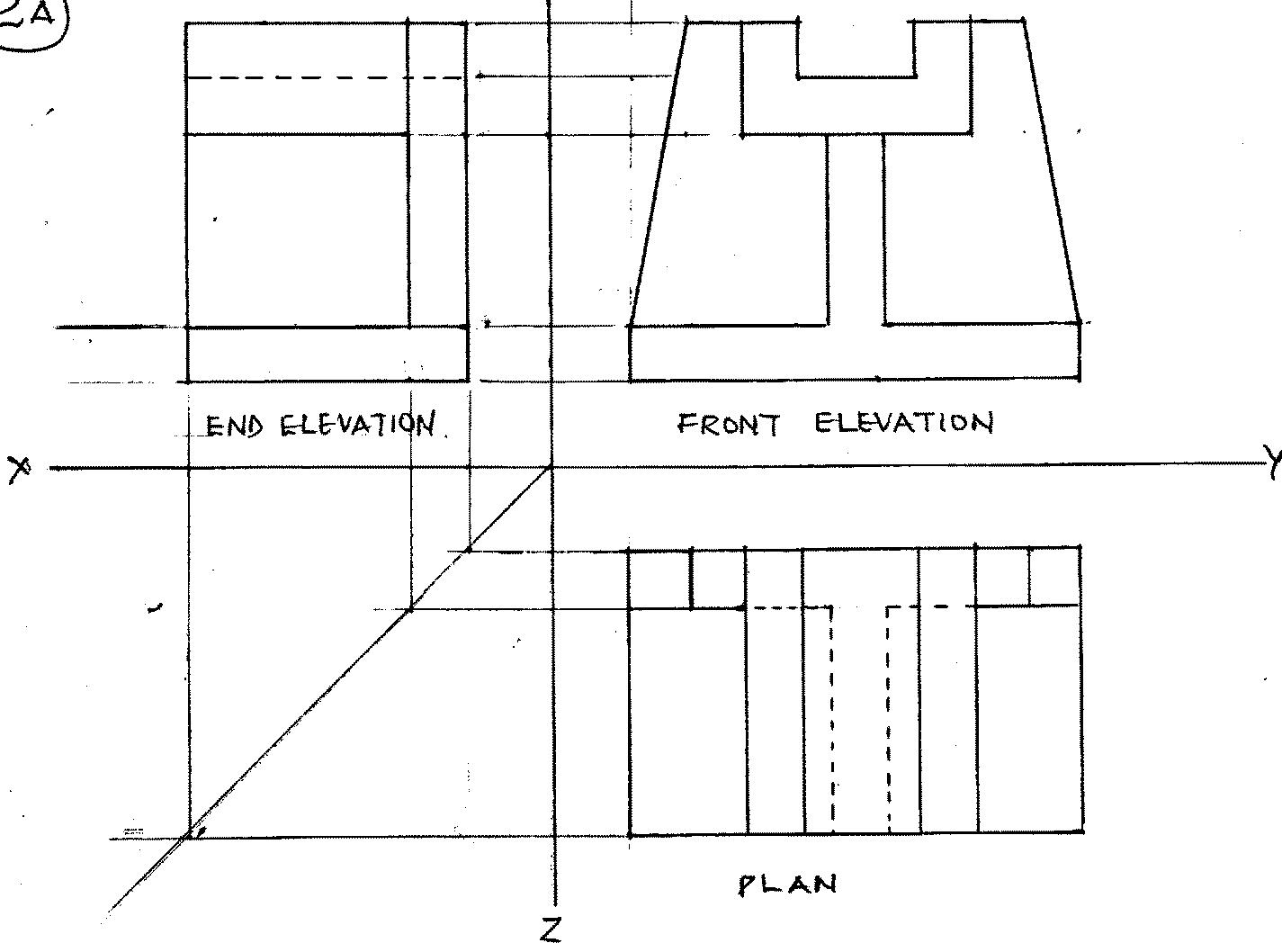

   2a.This question required the candidates to convert a block given in isometric to orthographic view. The solution is required in first angle which implies that a side is viewed from one end and projected directly to the opposite side. Most candidates demonstrated lack of this fundamental principle . The solution is shown below

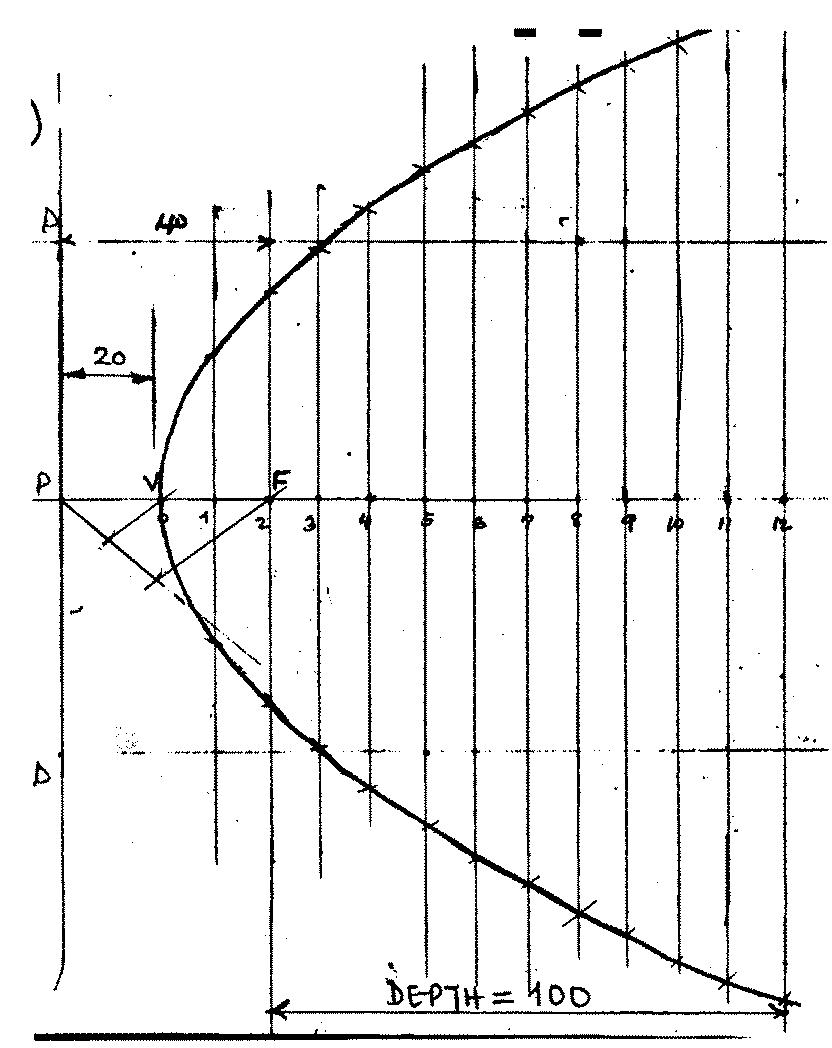

   2b.candidates were required to draw a parabola by drawing a directrix. The given  focus and depth are then set off  and the distance between the focal point and the depth is divided evenly to  get a suitable curve as shown in the solution below.
