Technical Drawing Paper 1, May/June 2011
Questions: 1 2 3 4 Main
General Comments
Strength
Weakness/Remedies






Question 3

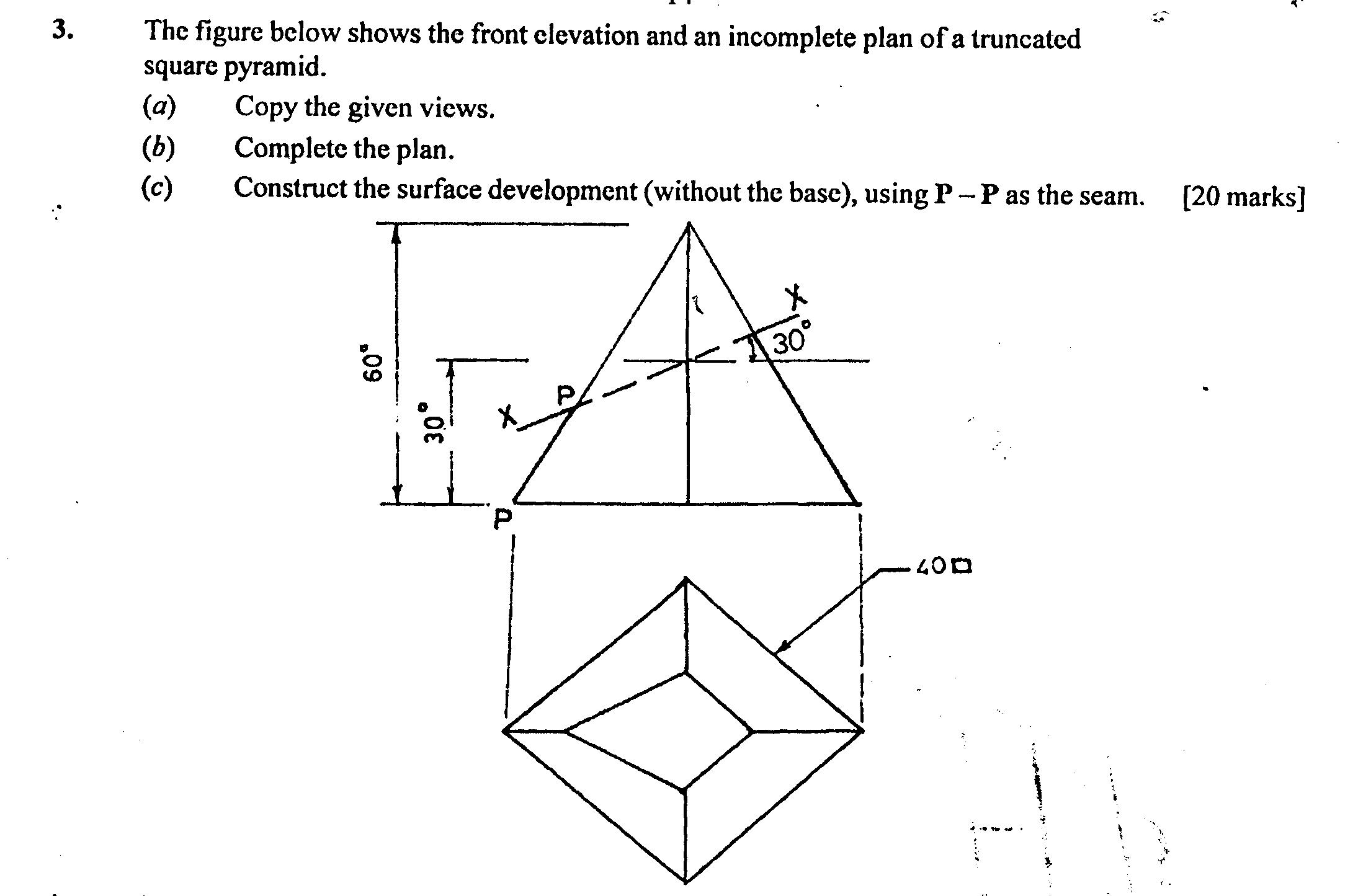

    The figure below shows the front elevation and an incomplete plan of a truncated square pyramid.
     (a) Copy the given views.
     (b) Complete the plan.
     (c) Construct the surface development(without the base), using P-P as the seam.             [20marks]


_____________________________________________________________________________________________________
OBSERVATION

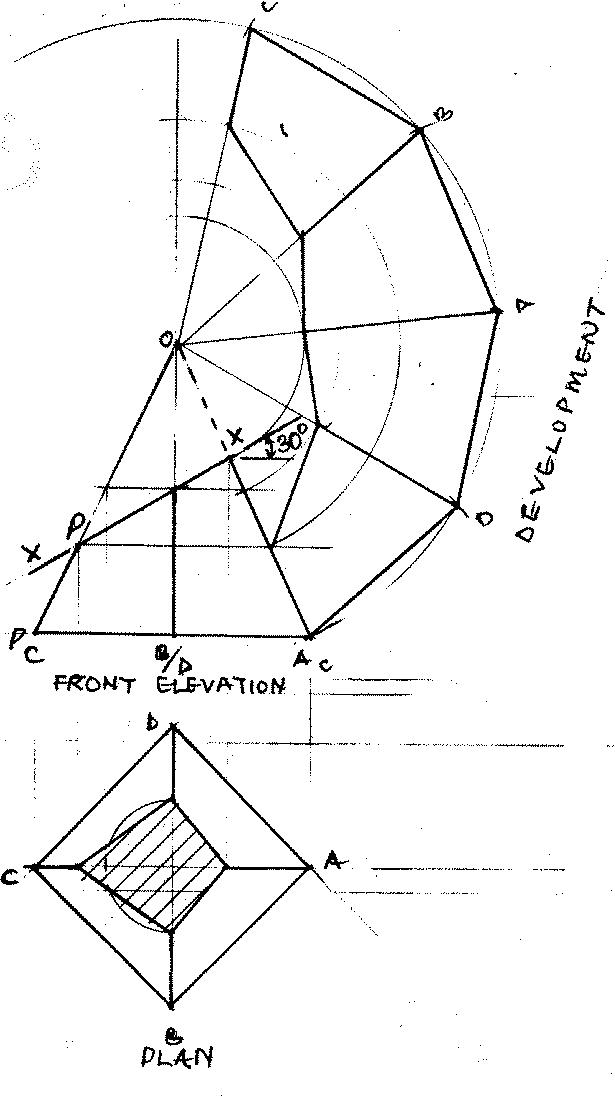

   Q3.From the truncated square pyramid given the candidates were required to draw the plan and surface development.  To complete the plan it has to be positioned correctly and projections from the cut-surface to the front elevation be taken. The expected solution is shown below. More than half of the candidates had above average in the question
