Technical Drawing Paper 1, May/June 2013
Questions: 1 2 3 4 Main
General Comments
Weakness/Remedies
Strenght






Question 3

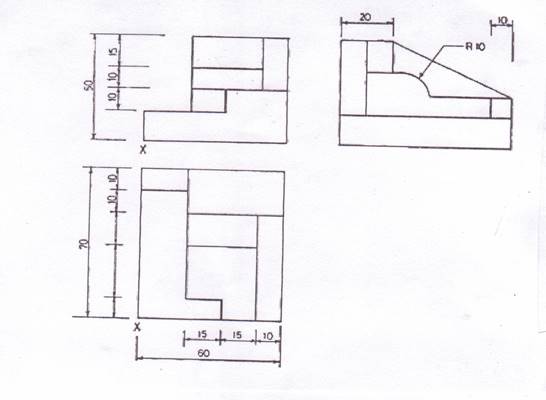

  1. Three views of a block were given in first angle projection below.  Draw the block in isometric view with X as the lowest point (Hidden details are not required)
_____________________________________________________________________________________________________

OBSERVATION

Candidates were expected to:

  1. use isometric axes;
  2. make X the lowest point;
  3. draw all the faces;
  4. copy all dimensions correctly;
  5. draw neatly.

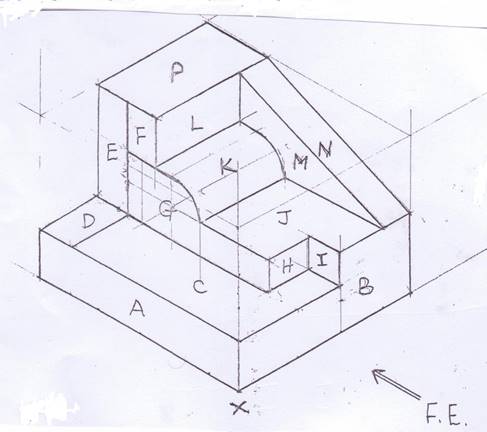

                        The solution is shown below:
