Technical Drawing 2, WASSCE (SC), 2021

Question 1

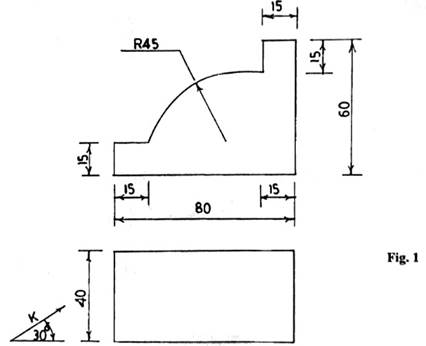

The sketch in Fig. 1 shows two views of a block in first angle orthographic projection.



Draw, full size, the:

  1. given views with the plan;
  2. auxiliary elevation in the direction of arrow K.







Observation



Most candidates attempted this question and were able to, as required, draw the given views, plan and auxiliary elevation.
