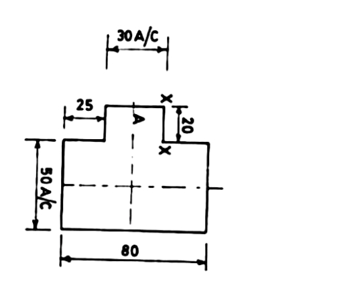

1. The sketch in Fig. 1 shows the intersection of two unequal prisms at right angle.

Draw, full size and in first angle orthographic projection, the:

1. Complete front elevation;
2. plan;
3. left end elevation;
4. development of part A, using XX as the seam.

Most candidates’ attempts on this question were very okay. They were able to adequately draw the given views.
