Technical Drawing 2, WASSCE (PC 2ND), 2022

Question 2

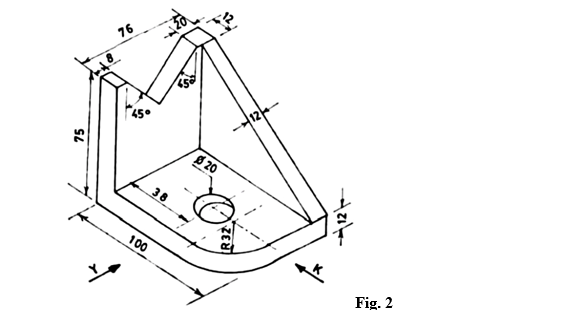

The sketch in Fig. 2 shows a block in isometric projection.

Draw, full size and in third angle orthographic projection, the:

  1. front elevation in the direction of arrow Y;
  2. plan;
  3. end elevation in the direction of arrow K.





Most of the candidates attempted this question. Their attempts were very good. They showed good know-how in the needed task.
