Technical Drawing 2, WASSCE (SC), 2023

Question 1

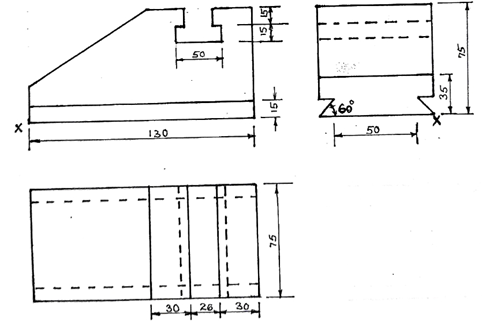

  1. The sketch in Fig. 1 shows a block in first angle orthographic projection
    .

Fig. 1
Draw, full size, the block in isometric projection, making X the lowest point.

Observation



Most candidates attempted this question and their responses were very good.
