Technical Drawing 2, May/June 2023

Question 2



  1. (a)  (i)  Construct a triangle with the following specifications:
    base length = 120;
    vertical angle = 60o;
    altitude = 50.
  2. Measure and state the lengths of the other two sides of the triangle.

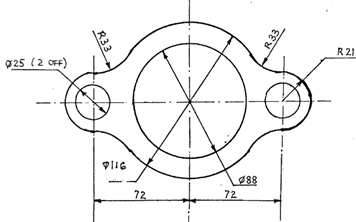

(b) The sketch in Fig. 2 shows an exhaust pipe gasket.

.

Fig. 2

            Draw, full size, the given view, showing all construction lines.





Observation



The candidates that attempted this question, which constituted a chunk of the oveall candidates, did very well.
