Technical Drawing Paper 3, May/June. 2014
Questions: 1 2 3 4 5 6 7 8 9 10 Section B 1 2 Main
General Comments
Strength
Weakness/Remedies
Question 1 SECTION A (PART 1)



SECTION A

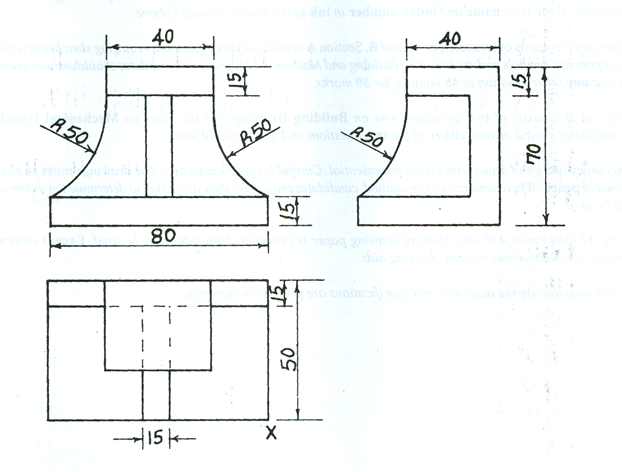

  1. The figure below shows a block in first angle projection.  Make a freehand isometric drawing of the block making X the lowest point.




Observation

Candidates were expected to:

  1. draw the block in isometric;
  2. make X the lowest point;
  3. draw for resemblance;
  4. draw for proportionality;
  5. draw the block showing twelve faces;
  6. draw neatly.

The solution is shown below
