Technical Drawing 3, WASSCE (SC), 2020

Question 1

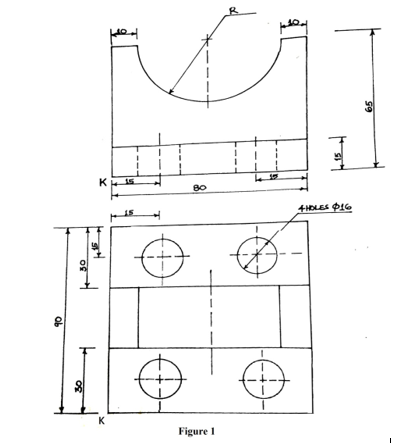

(1)       Figure 1 shows the plan and end elevation of a bearing support in first angle orthographic projection.



Make a freehand isometric drawing of the block, making K the lowest point



Observation



Majority of the candidates could not draw the isometric view correctly: in most cases the, linework is poor and the curves were inappropriately drawn.



FREEHAND SKETCH THE ISOMETRIC VIEW OF A BLOCK GIVEN IN FIRST ANGLE ORTHOGRAPHIC PROJECTION

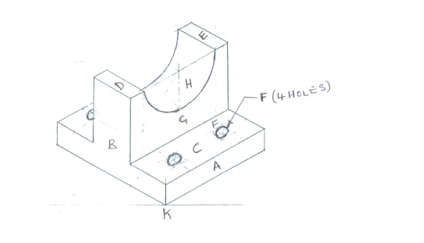

The solution is shown below:







MAJOR REQUIREMENTS FOR THE CONSTRUCTION OF THE BLOCK






















  • Sketching the casting in isometric
  • Making ‘K’ the lowest point
  • Resemblance
  • Proportionality
  • Sketching face A
  • Sketching face B
  • Sketching face C
  • Sketching face D
  • Sketching face E
  • Sketching face F (3 Holes)
  • Sketching face G and H
  • Neatness and quality of lines
