Technical Drawing 3, WASSCE (SC), 2020

Question 4

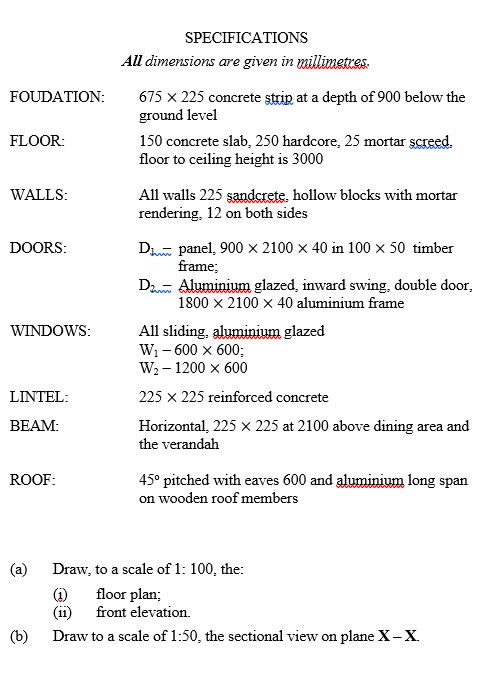

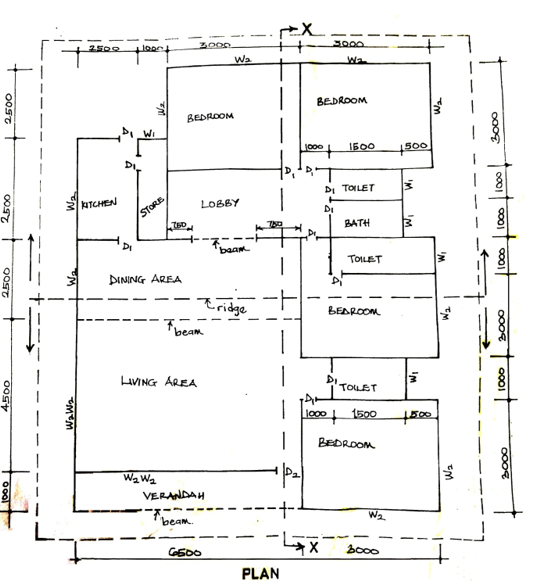

Fig. 2 shows the sketch plan of a four-bedroom bungalow.  Study the sketch with the given specifications and answer the questions that follow



Observation



Most of the candidates answered this question and their performance was good. However, a few of them could not satisfactorily draw the sectional view along X-X.
The solution and the requirement for the poorly answered part of the question is given below.

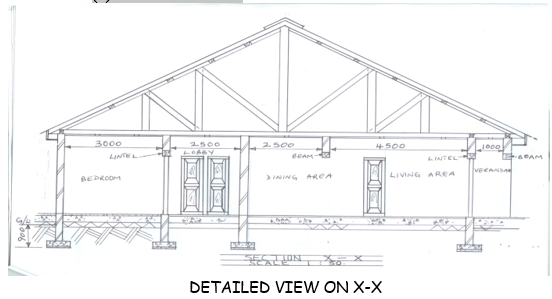

(b)   SECTION X – X





MAJOR REQUIRMENTS FOR DRAWING THE SECTIONED PLANE
-     Drawing to correct scale 1:50
-     Drawing the ground line
-     For drawing 4 foundation footings with convention
-     Drawing the earth filling with convention
-     Drawing hard core with convention
-     Drawing the concrete slab with convention
-     Drawing the floor finish
-     Drawing 4 walls in section with convention
-     Drawing 4 foundation walls in section with convention
-     Drawing the pitch roof
-     Drawing the ceiling and nogging
-     Drawing 2 doors in section and 3 in elevation
-     Drawing 2 beams
-     Drawing 2 lintels
-     Writing sectional view X – X
-     Neatness and quality of lines

:
