Technical Drawing 3, WASSCE (SC), 2021

Question 5

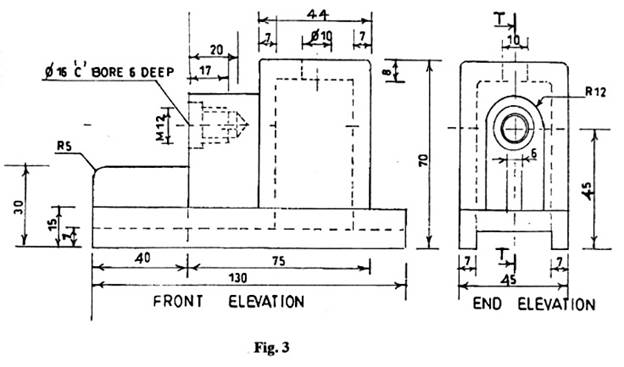

The sketch inFig. 3 shows two views of a block in first angle orthographic projection.



    Draw, full size and in first angle orthographic projection, the:
(a)        end elevation;
(b)        section front elevation of the assembly along plane T-T;
(c)        plan of the assembly.

[Assume suitable dimension(s) where unspecified/necessary]

Observation

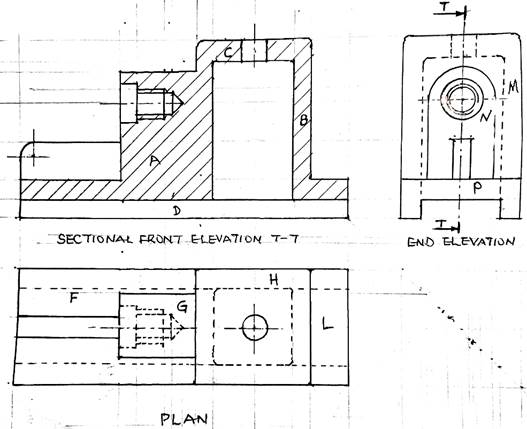

THE REQUIRED ECHANICAL (ASSEMBLY) DRAWING

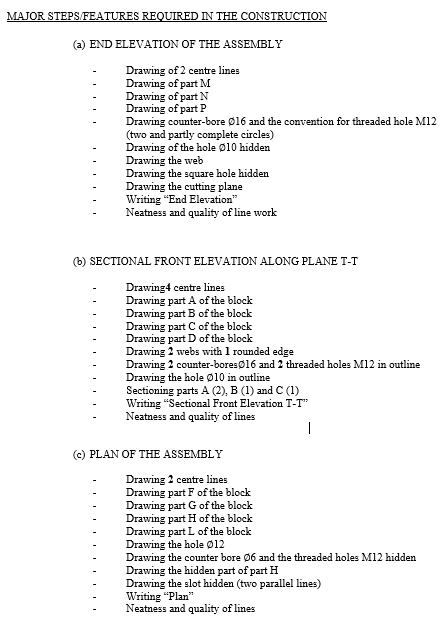

Addendum

  1. Drawing to a scale of 1:1
  2. Drawing in first angle projection
