Question 2

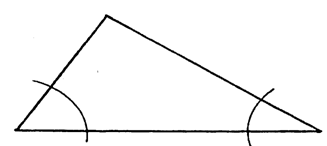

:Construct a circle in the triangle below. [2 marks]



_____________________________________________________________________________________________________
Observation

Candidates were required to;

  1. bisect two angles of the triangle to intersect at point O;
  2. use point O as centre and draw a circle to touch the three sides.

The solution is shown below.
